Espar AS3 B2L 12V Heater- Full Kit (Gasoline)
The Espar AS3 B2L heater Full Kit (Gasoline) is the classic way to heat the interior of your van using fuel from your main tank. AVC RIG carries this kit. It includes everything you need to install the Espar in your Sprinter van, and it operates up to ~13,120 ft. with the included altitude sensor.
Not all Espar kits are built the same. These are genuine Eberspacher heaters with Eberspacher wiring harnesses.
Key Features: Espar AS3 B2L Heater Full Kit (Gasoline)
- Fits universally where space allows
- Espar Full Kits are designed for 2007+ Mercedes Sprinters, 2014+ Ram ProMaster, and 2015+ Ford Transit vans (read more below)
- Efficient cabin heating on gasoline builds, no diesel tank required
- Low electrical draw (6–26 W) protects your house batteries off-grid
- Automatic altitude capability up to 13,120 ft (4,000 m) for mountain trips
- Compact body for flexible placement in van conversions and campers

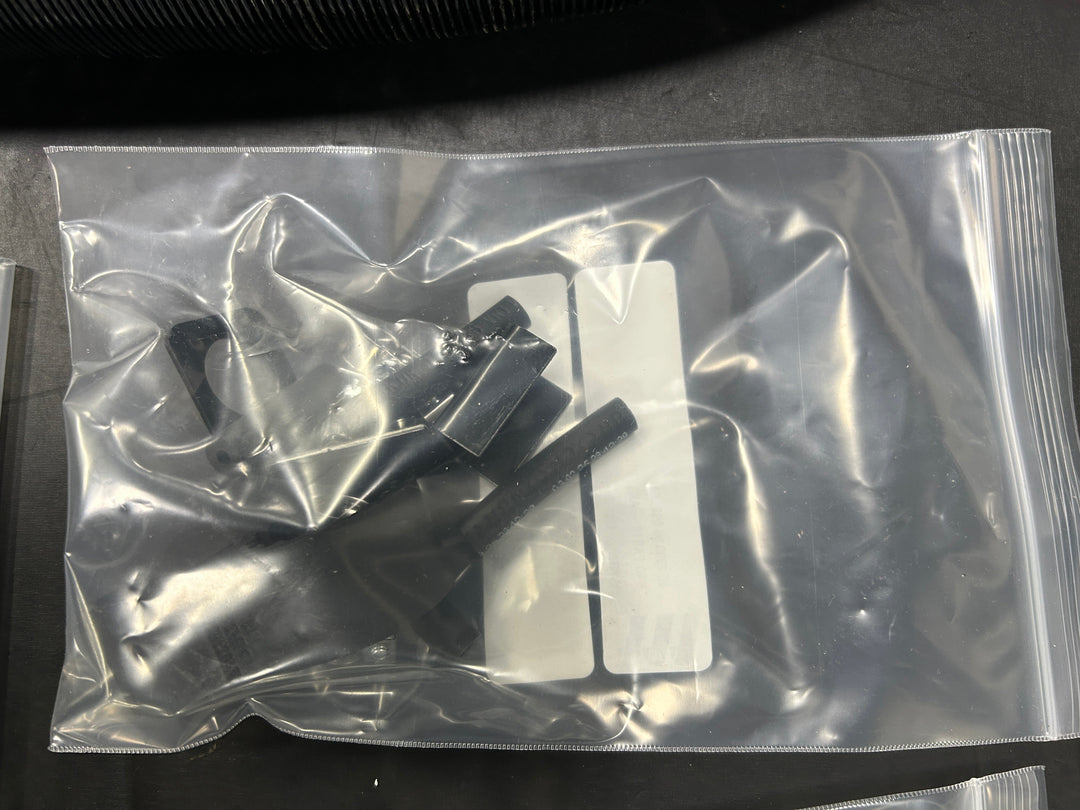

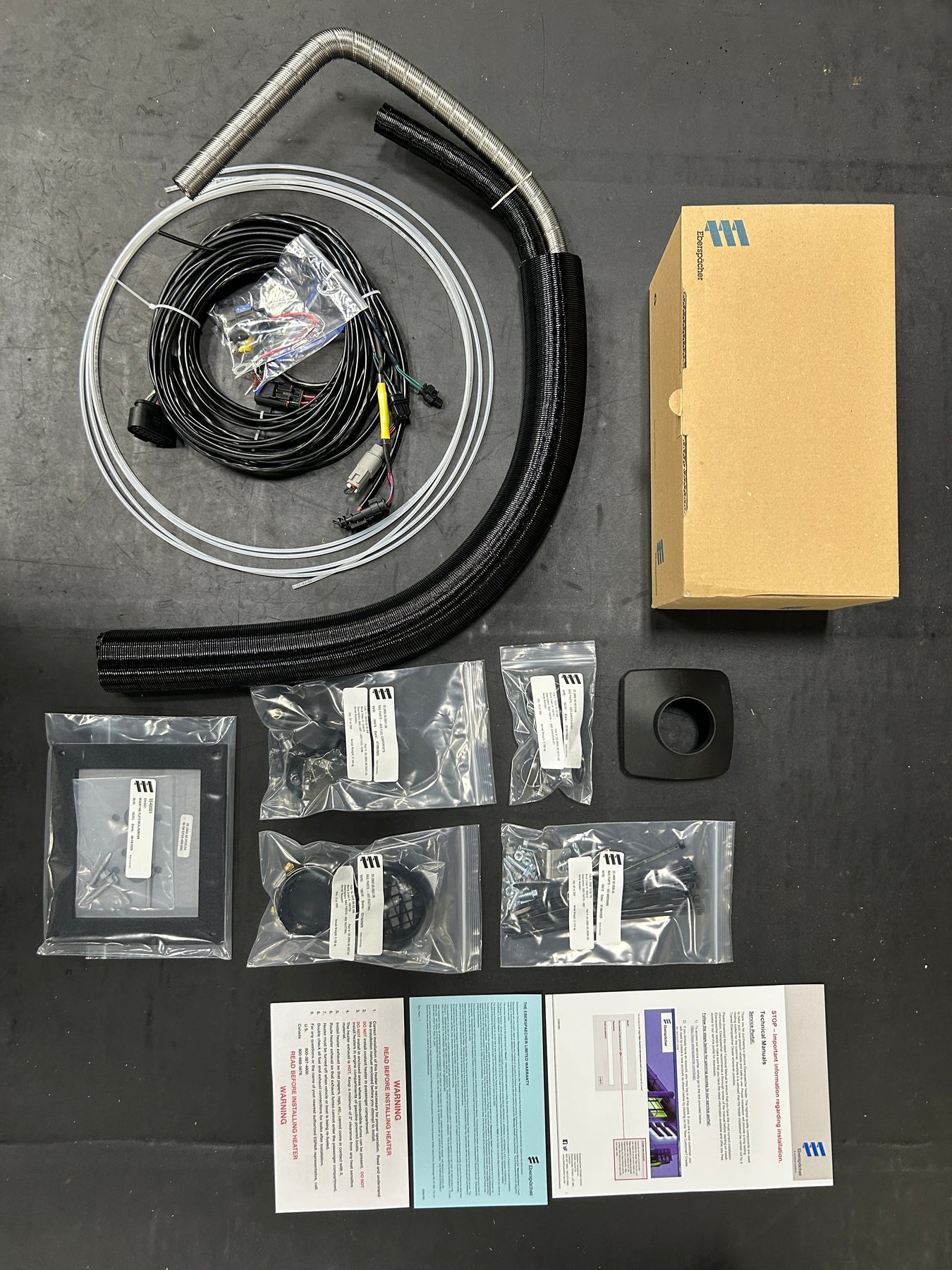

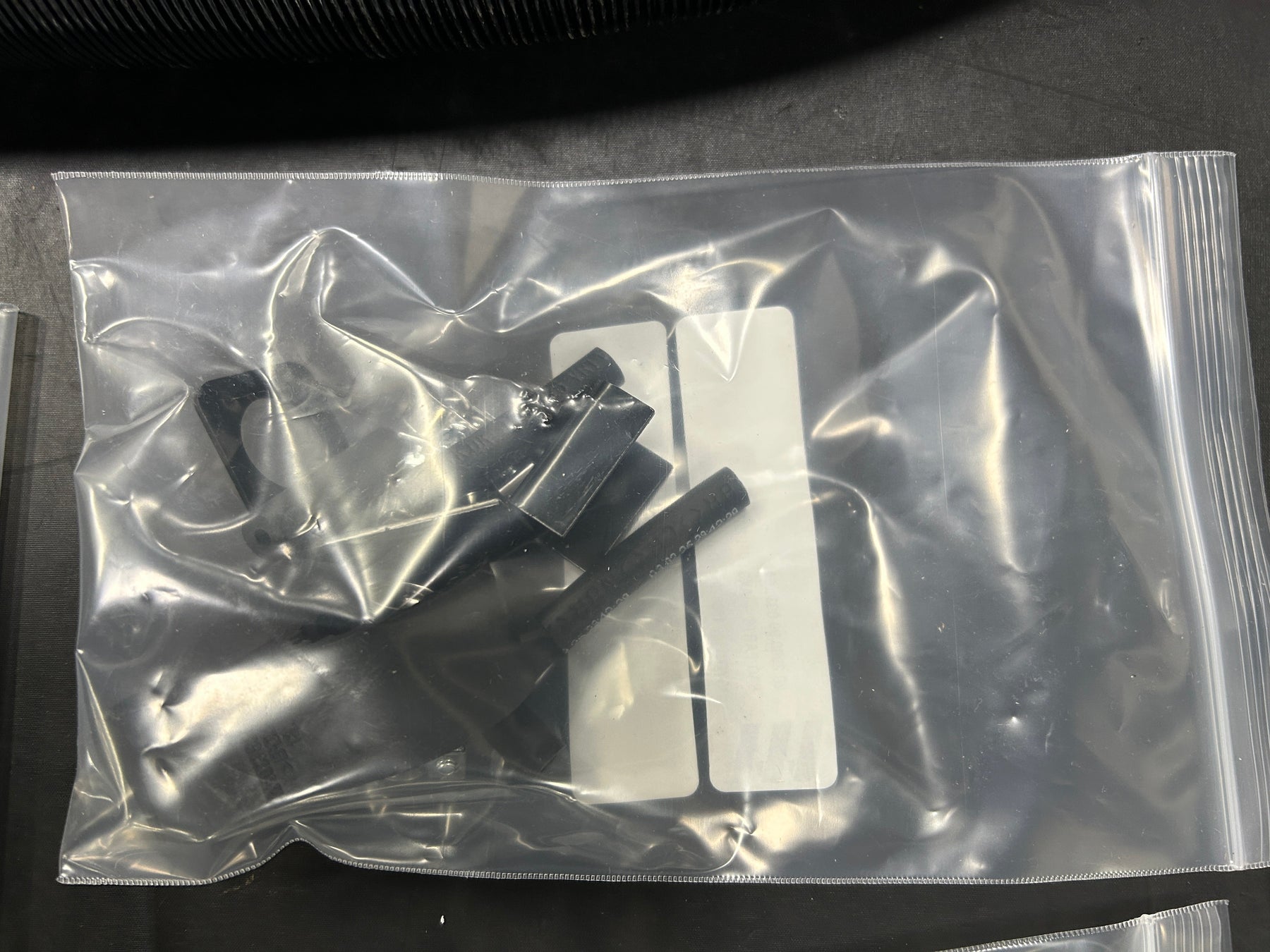

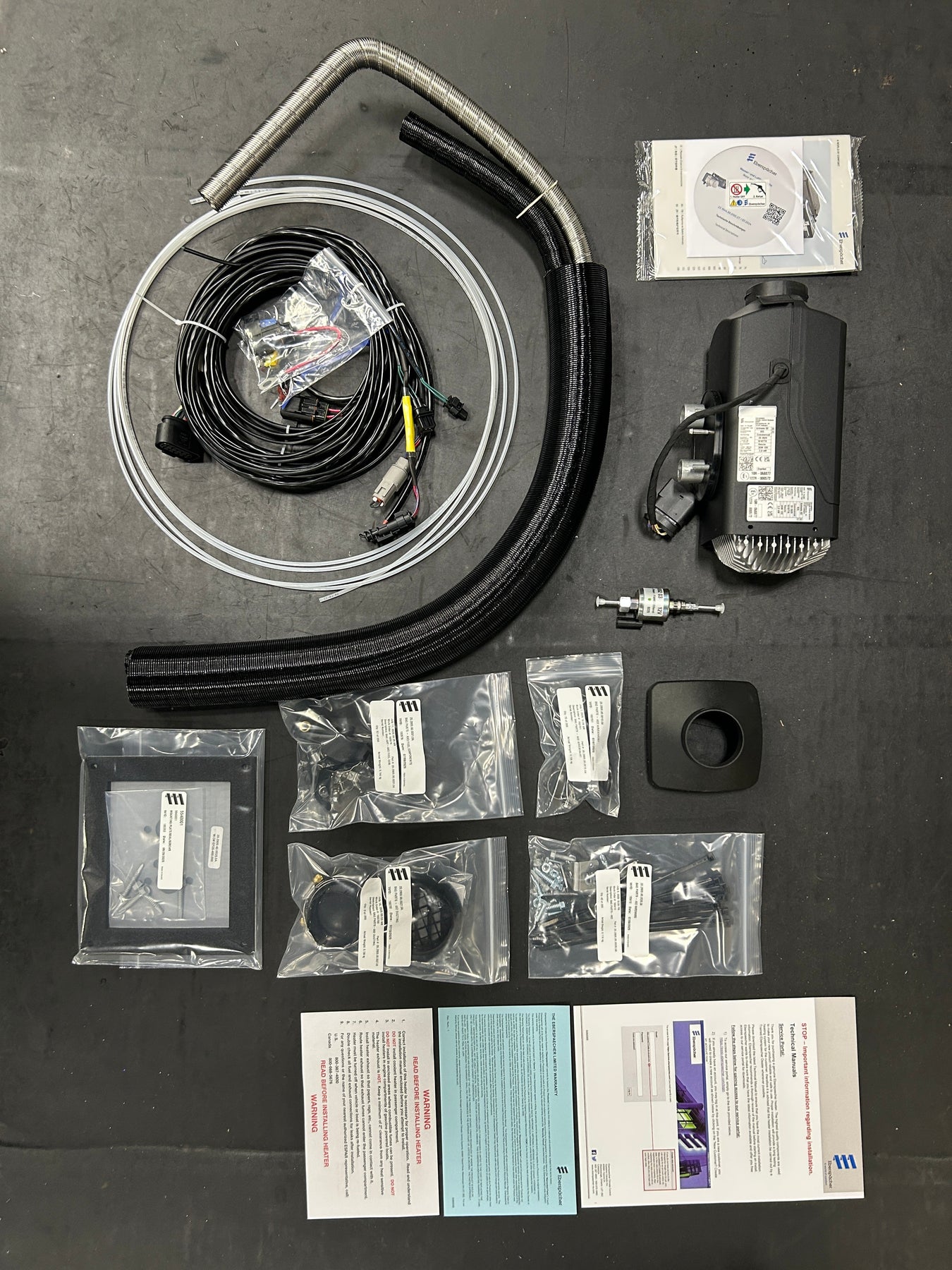

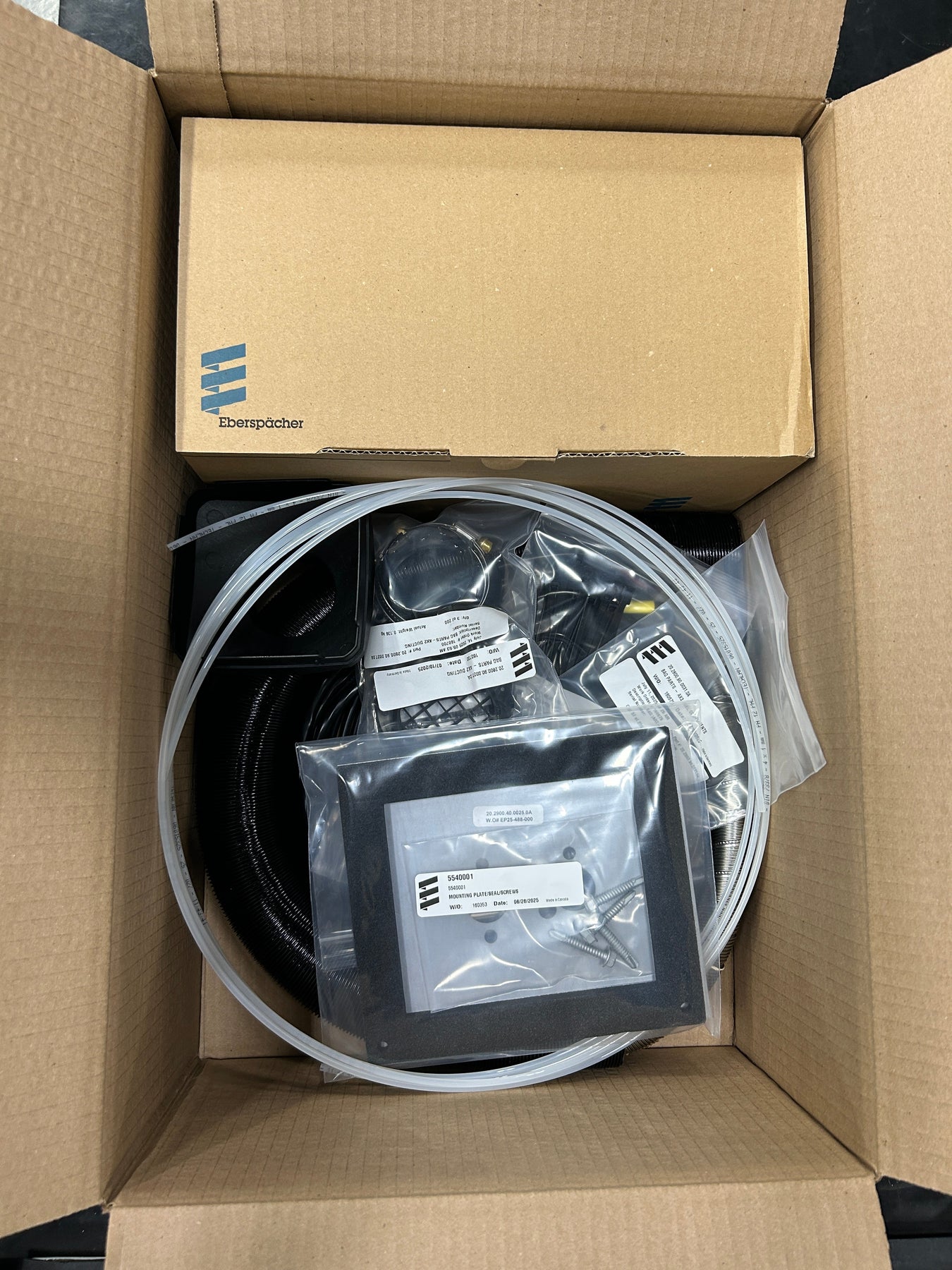

What's Included

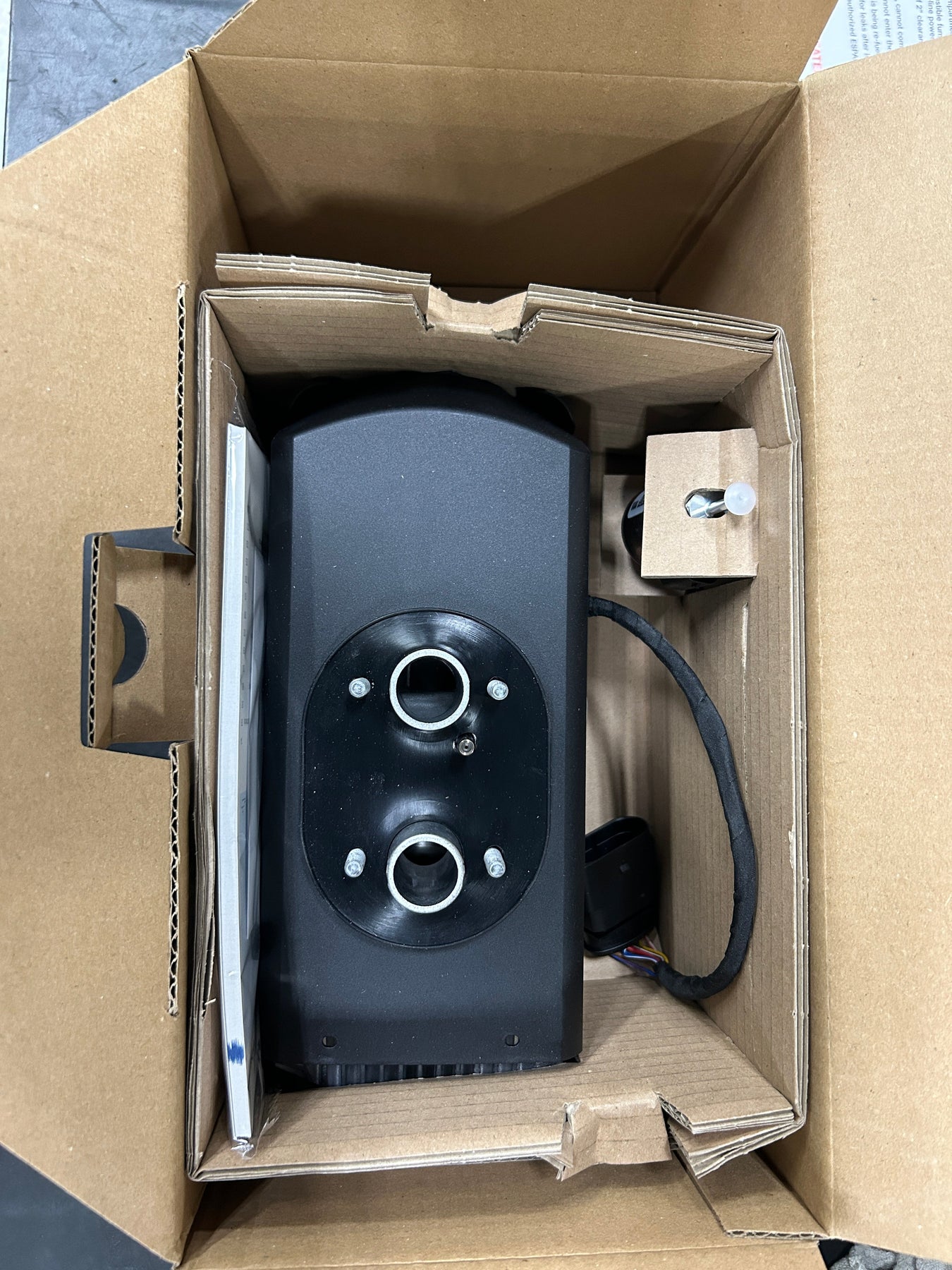

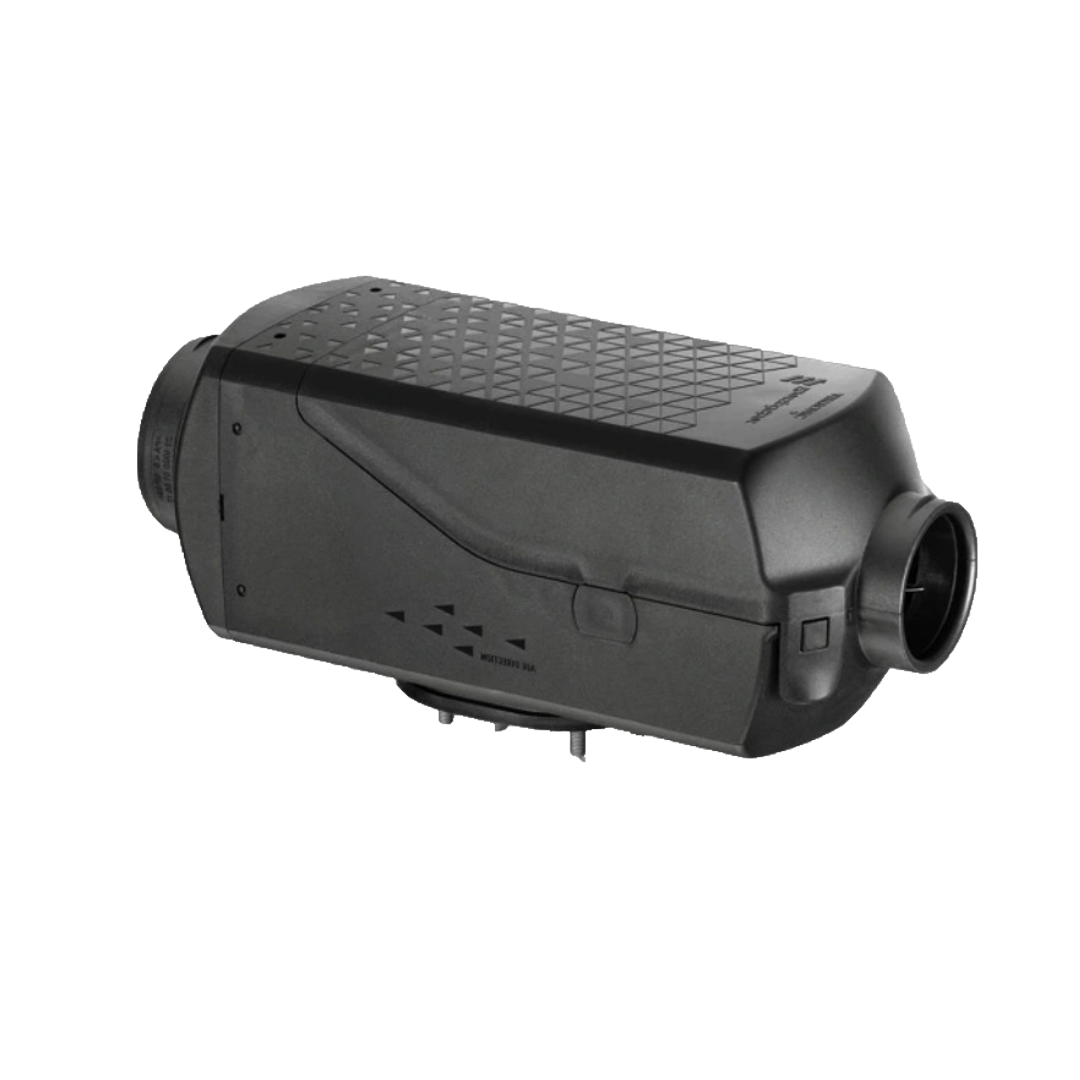

- Espar AS3 B2L 12V Heater (Gasoline)

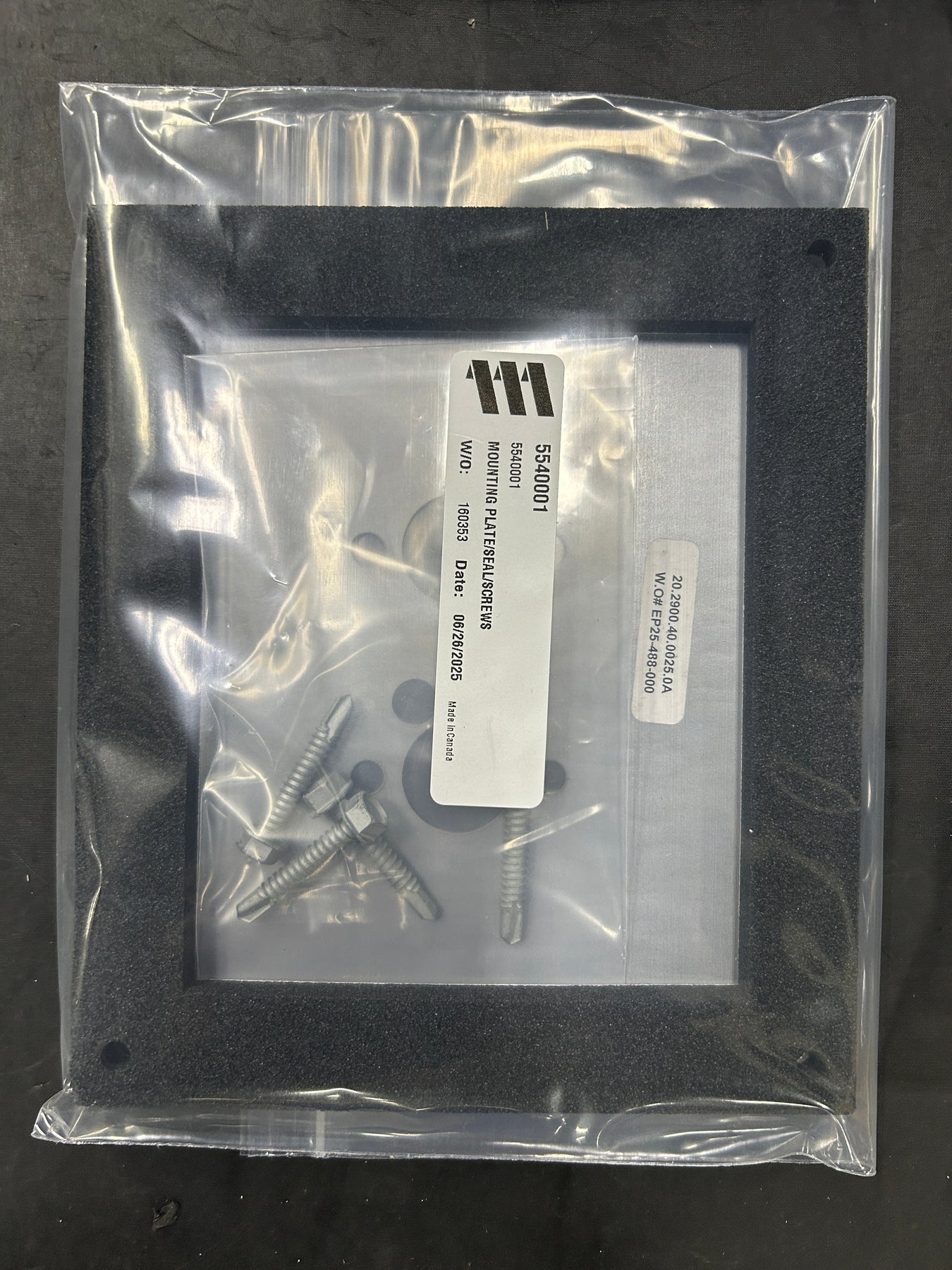

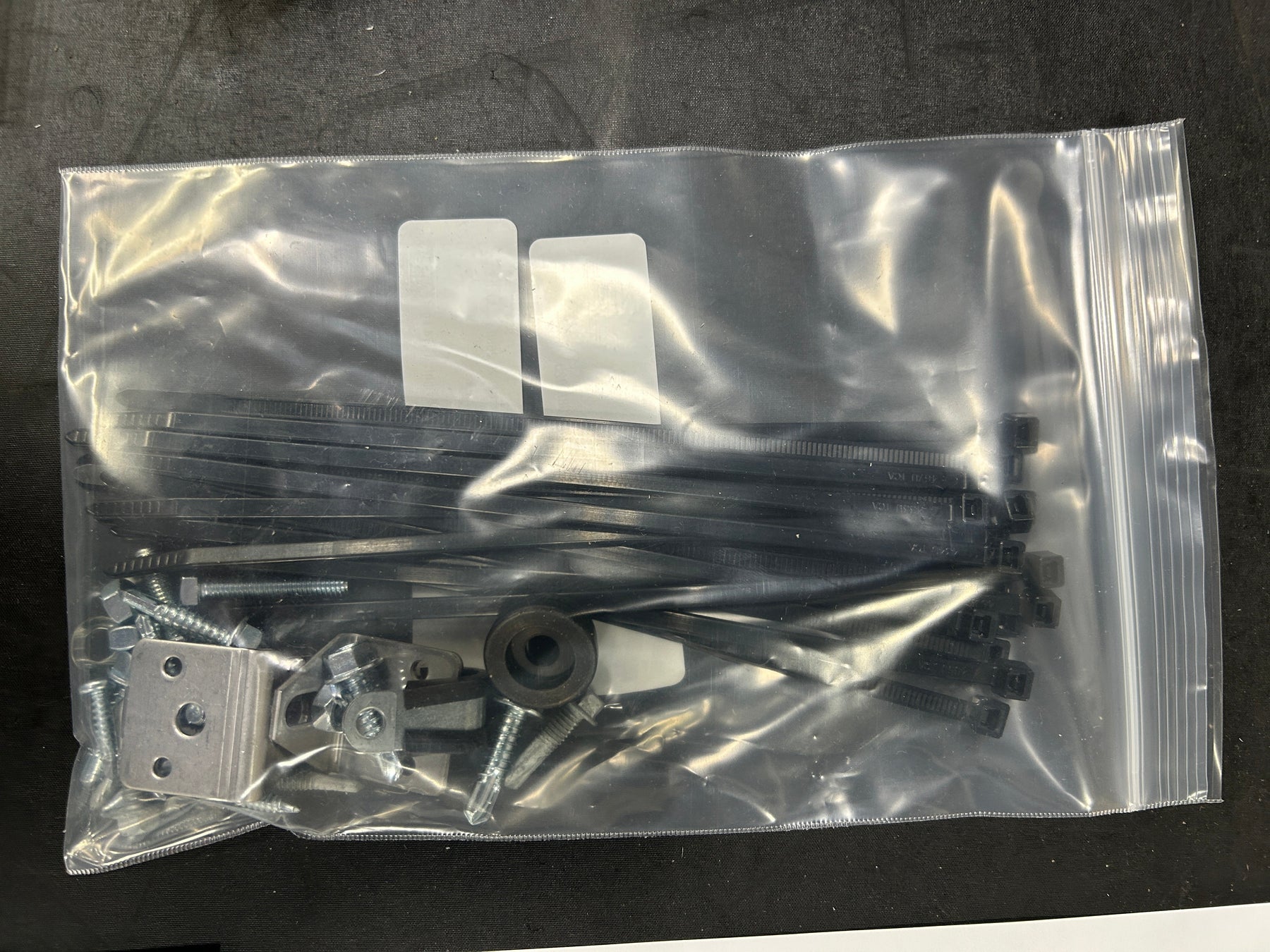

- INSTALL KIT - AIRTRONIC S3 B2L 12V

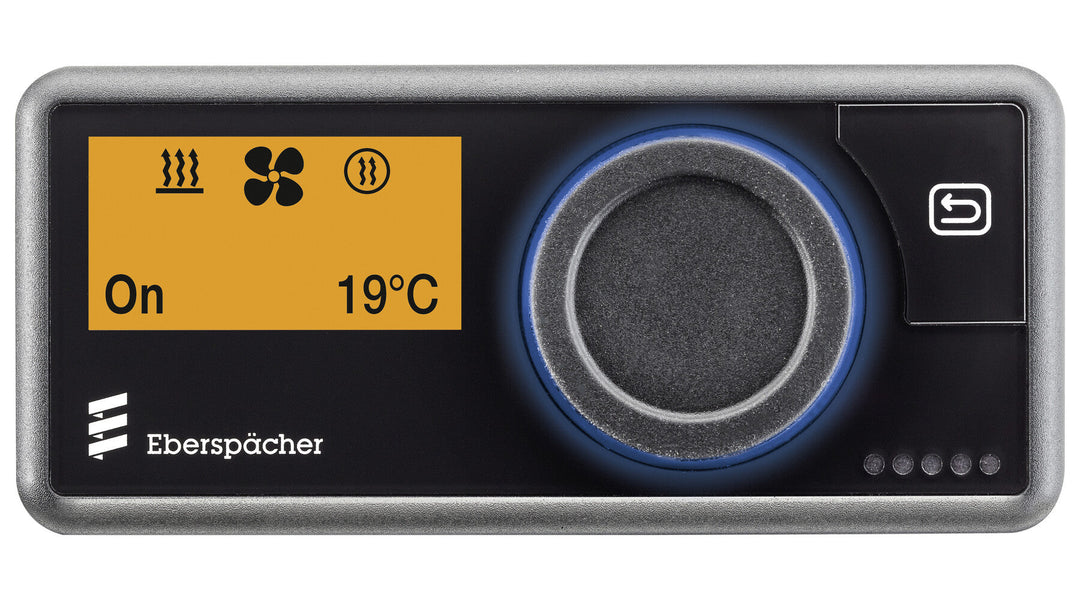

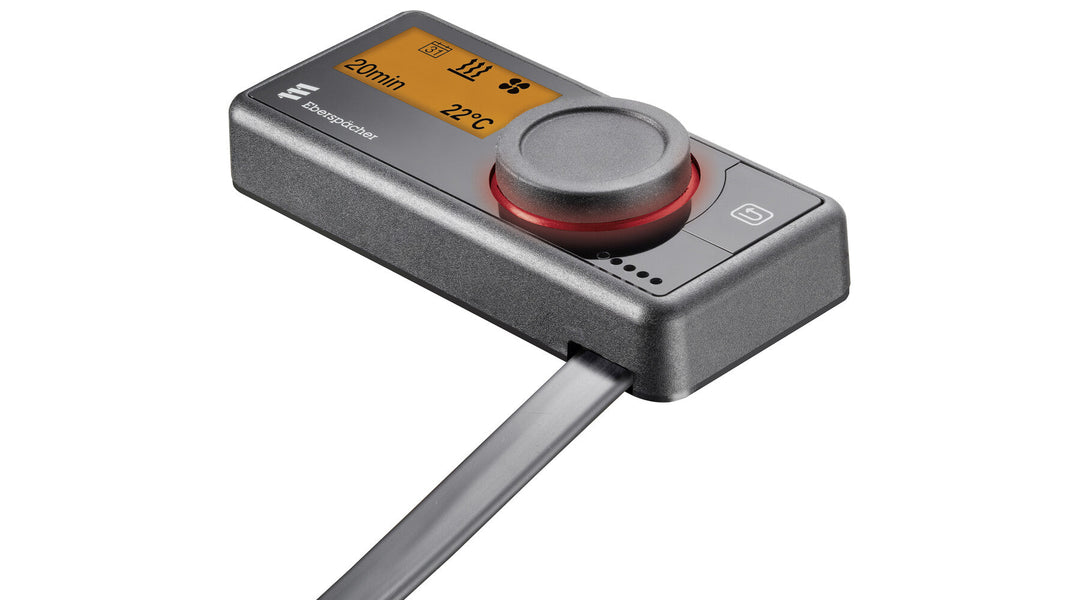

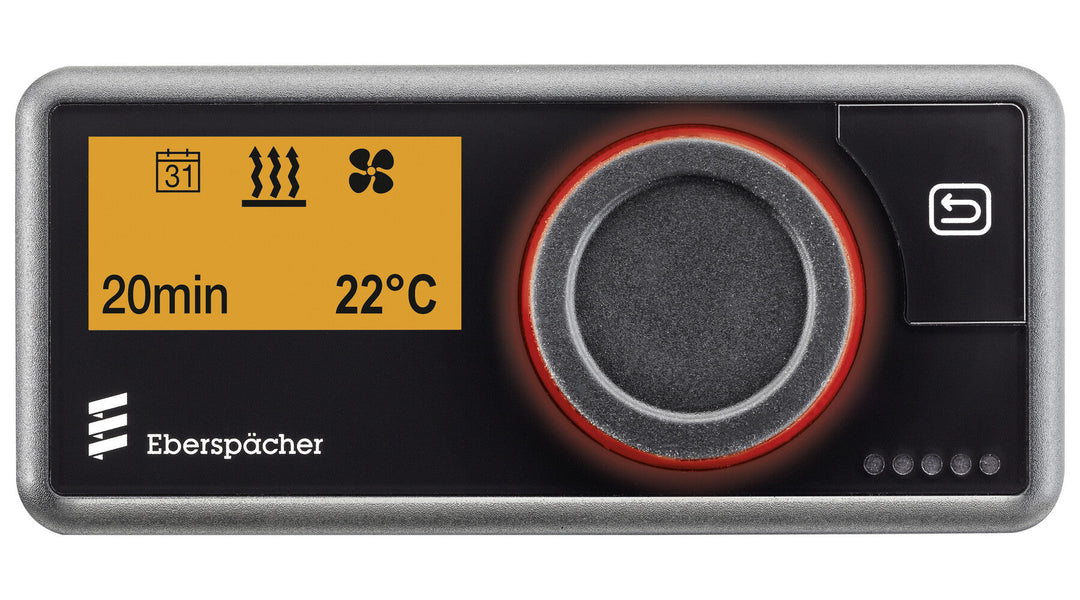

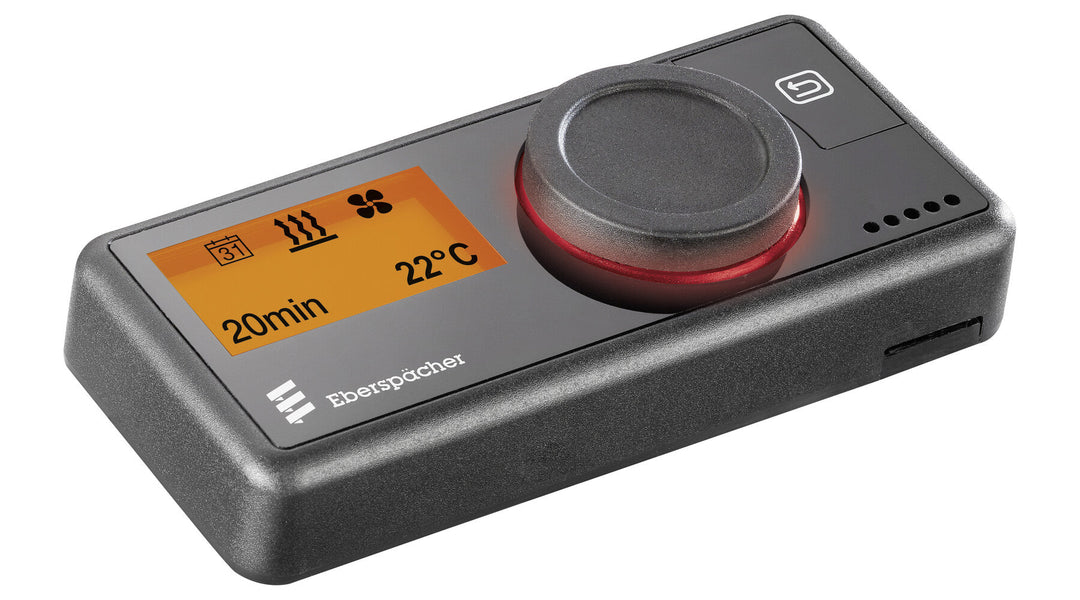

- CONTROL KIT - EASY START PRO CONTROLLER WITH ADAPTOR
- EXHAUST MUFFLER 24MM

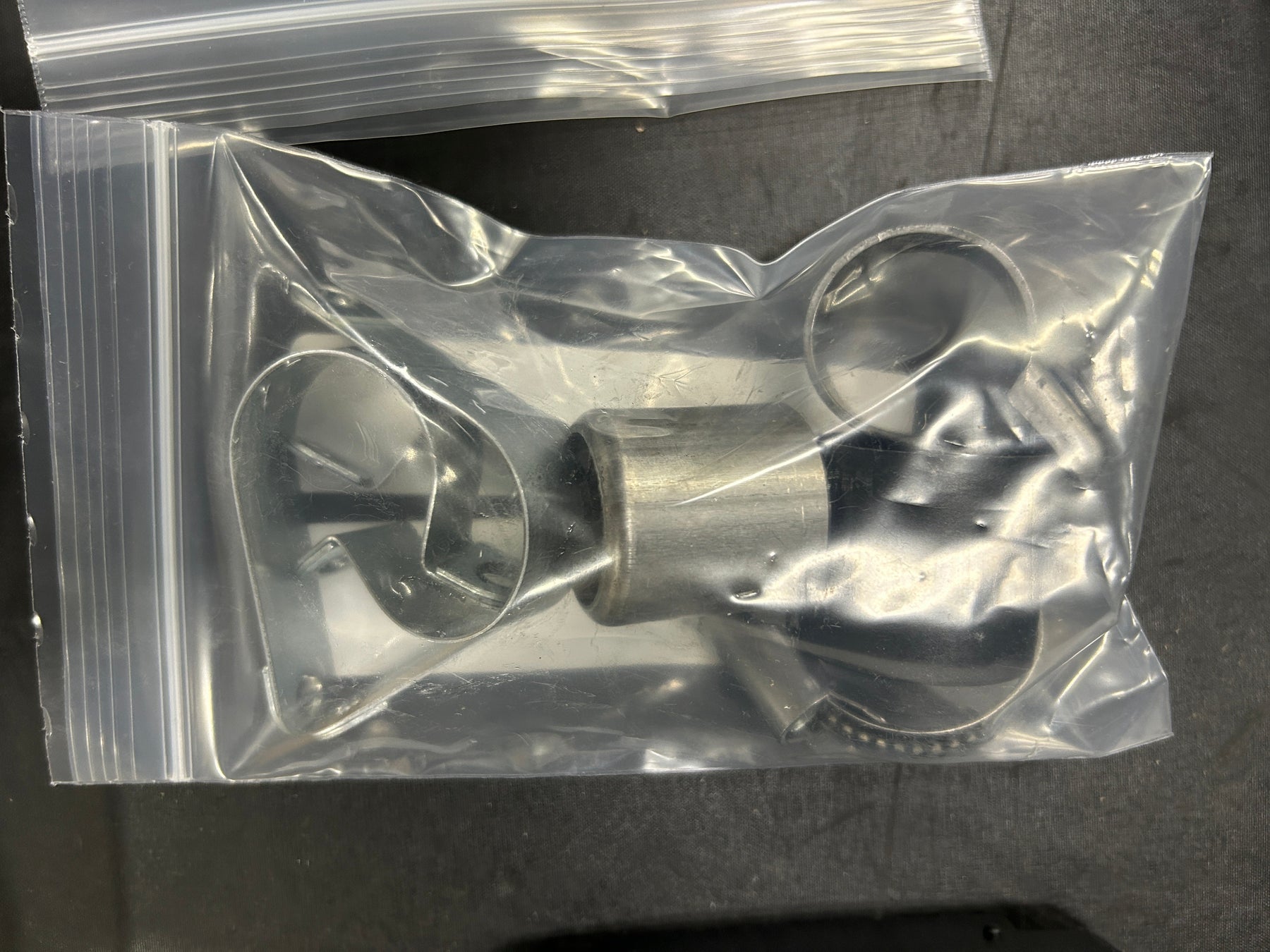

- 26-28mm MUFFLER CLAMP (2x)
- FUEL LINE ADAPTER 7.5MM - 3.5MM
- GAS FUEL PICKUP (standpipe)
Vehicle Fit and Fuel Pickup Notes
How the Espar AS3 B2L heater connects to fuel depends on your van.
Mercedes Sprinter vans: This kit comes with a fuel standpipe (fuel pickup), not the T-Piece kit commonly used. The install kit hoses attach to the factory auxiliary port with clamps, or source the Dorman Auxiliary Fuel connector adapter (Part# 800-188) separately.
Ram ProMaster vans have an Auxiliary Fuel Port under the cab floor entry. The included hoses attach to the factory port with clamps, or source an Auxiliary Fuel connector adapter separately.
Ford Transit vans will require dropping the fuel tank on the vehicle and adding an additional fuel pickup pipe and components. Espar B2L - Ford Transit Kit option now available!
Muffler Installation: The muffler shows no airflow direction. Espar confirmed it mounts either direction; follow the install guidelines for undercarriage mounting.
Recommended: add insulation wrap to exterior fuel lines and connections to prevent cracking.
Shop Sprinter parts and Transit accessories.
Documents: Espar AS3 B2L Heater
Install Instructions
Operating Instructions (English, pg 30)
Technical Sheet
Troubleshooting Guide
Easy Start Pro Controller Documents
Controller Guide Additional Info
Additional Product Info
Wiring Diagram
Specifications: Espar AS3 B2L Heater (Gasoline)
|
Heater Dimensions (HxWxD) |
121.92mm (4.8 in.)H x 309.88mm (12.2".)L x 114.808mm (4.52 in.)W |
|
Weight |
5.5 lbs (2.5 kg) |
|
Heat Output |
6824 BTU (2.0 kW) |
|
Operating Voltage |
12VDC |
|
Rated Power Consumption |
11-26W |
|
Fuel Consumption |
0.04 - 0.07 gal/h (0.14 - 0.26 l/h) |
|
Fuel Type |
Gasoline |
|
Altitude Compensation |
13,120ft (4000m) |
|
Start Up Requirement |
Glow plugs require ~30A at startup for the first minute or two. |
