How much insulation does the Transit insulated subfloor add?

The Baltic birch and 1 inch polyiso panels give an R-value of 6.6.

How tall is the subfloor?

It sits about one inch above the top of the van's ribs.

Is the step and trim included?

No. The Transit Floor Step and Trim is sold separately.

Ford Transit Insulated Baltic Birch Subfloor System

Name: 148 EXT / No (Solid - No L-Track) Ford Transit Insulated Baltic Birch Subfloor System
SKU: A-T-FSB-EB-NL
Price: 2850.0 USD

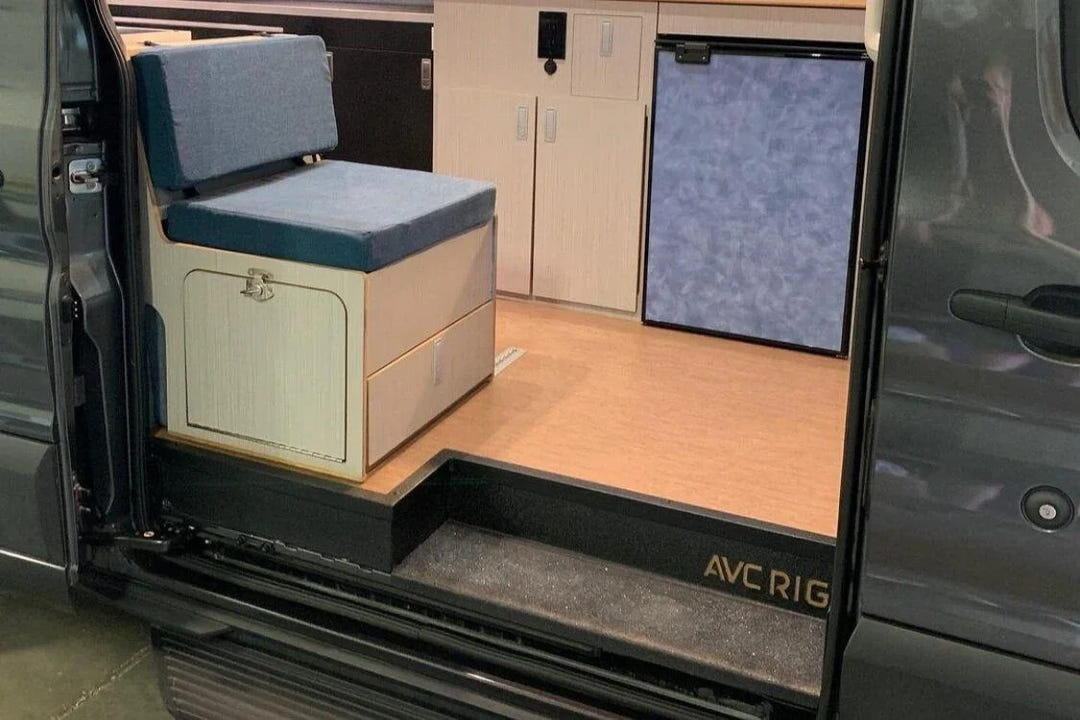

AVC Transit 148 Insulated Flooring System

Drop-in solution for Ford Transit floor insulation and subfloor!

The AVC Ford Transit insulated subfloor system isn't just a subfloor. It's the foundation of your van conversion, built to give your camper van a durable, pro-grade base and a clean, seamless install from day one.

Step and Trim Set sold separately (link below).

A Transit Insulated Subfloor Cut for a Perfect Fit

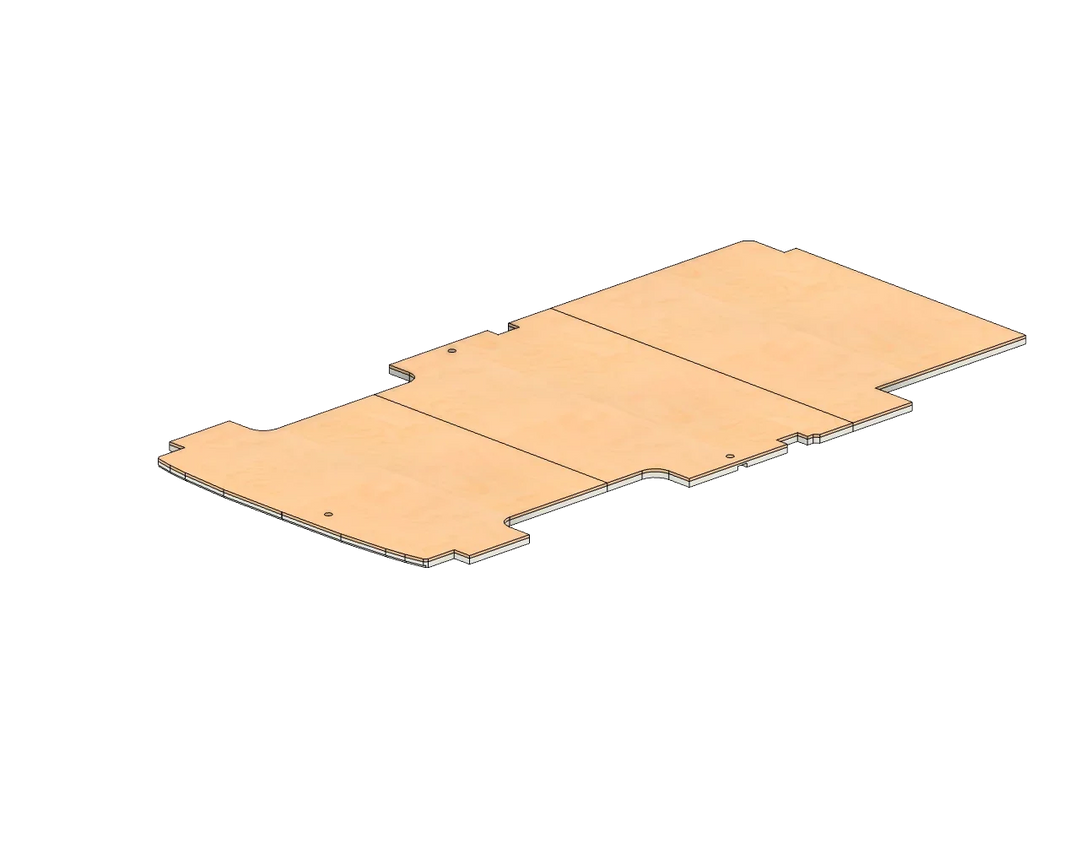

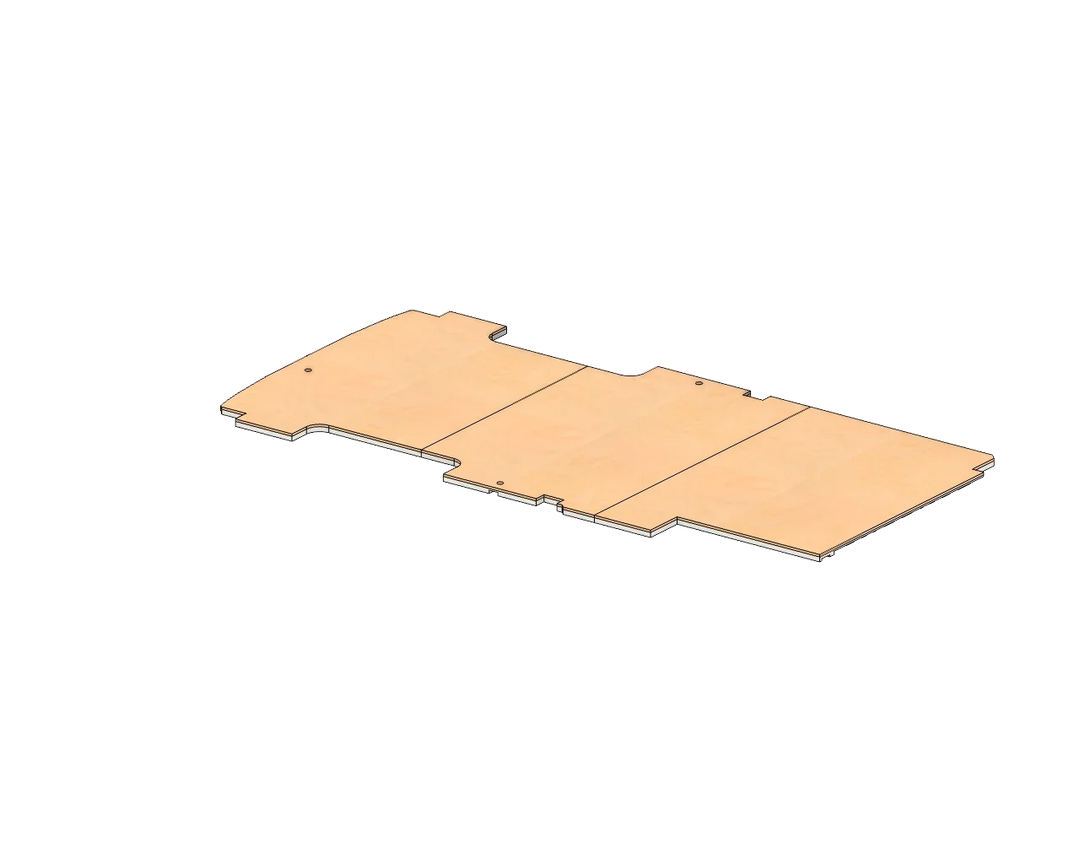

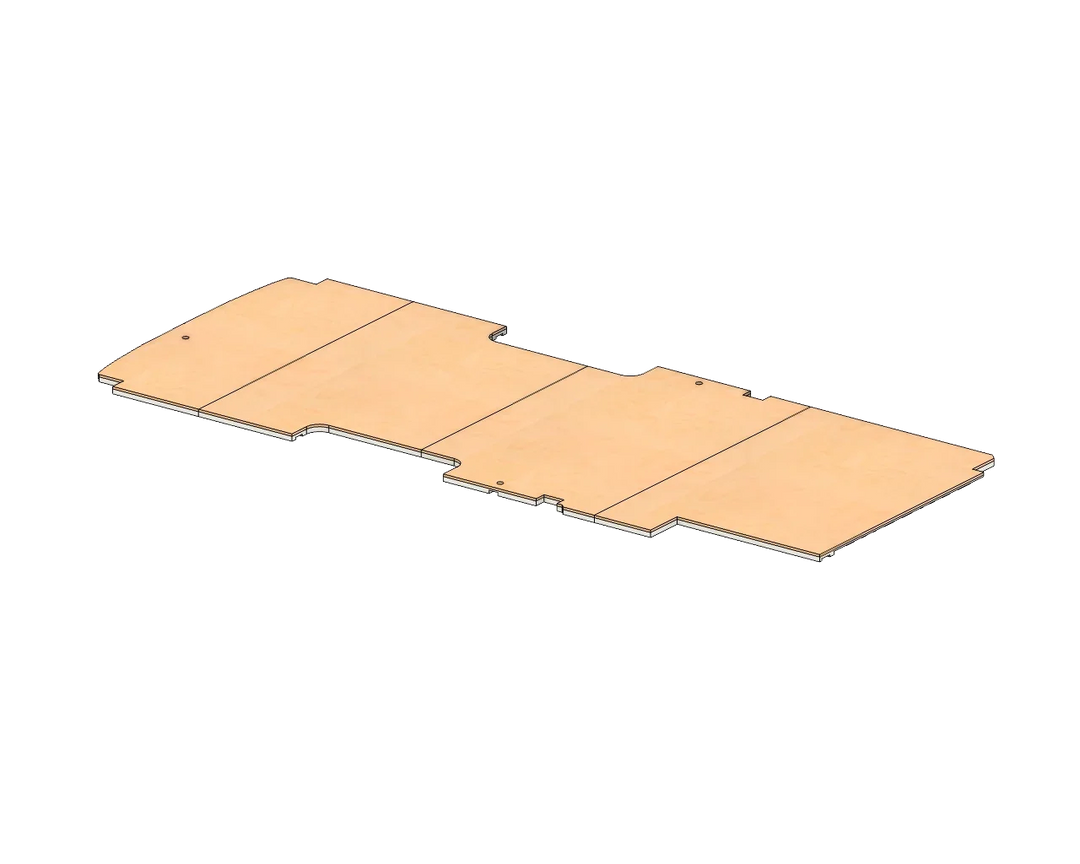

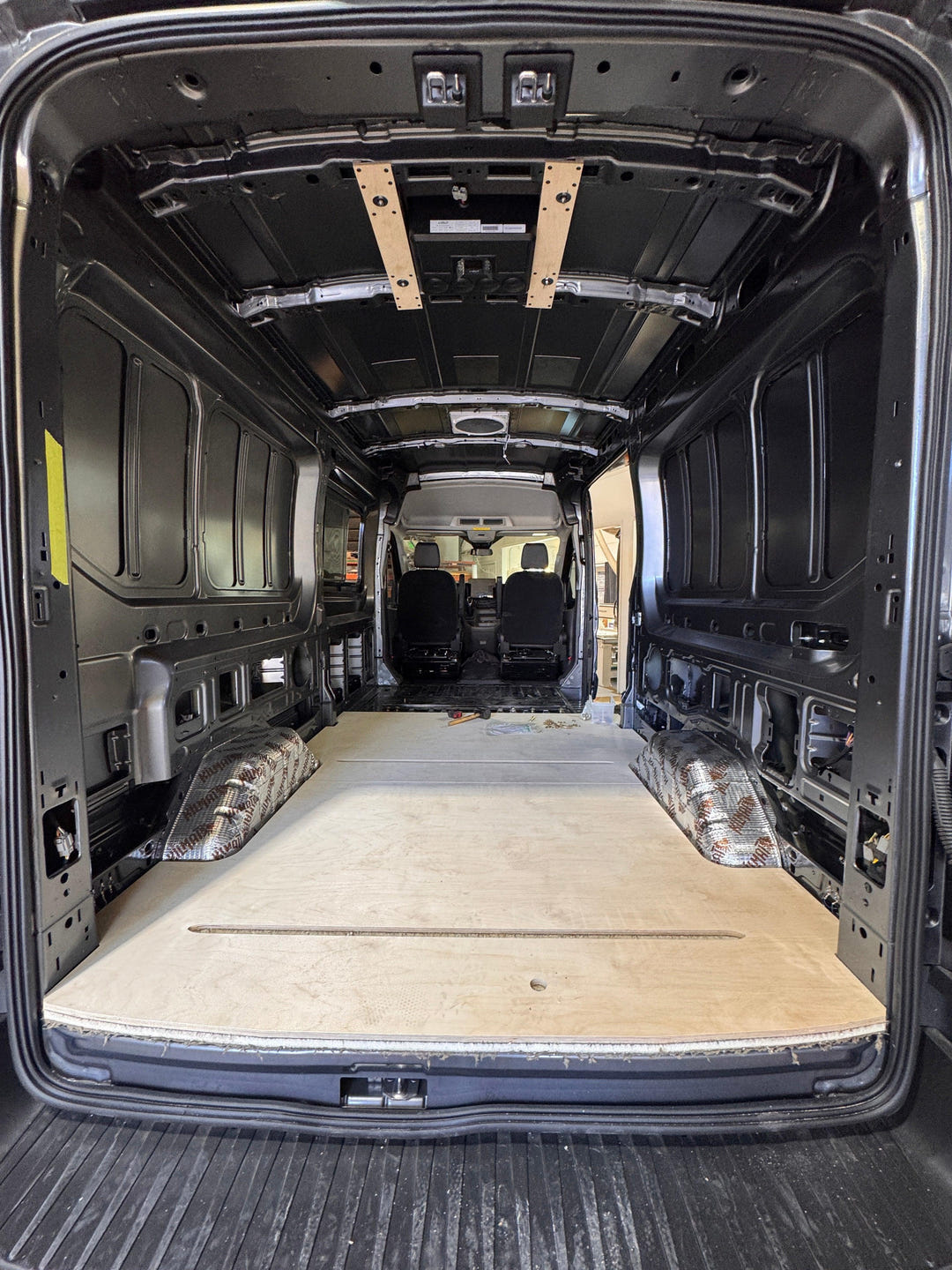

We build every subfloor in-house on a CNC machine. Systems are available for both the 148 inch and 148 inch extended wheelbase Ford Transit. Each floor is made from three or four panels, depending on van length, that match the contours and ribs of the van floor. The tight, drop-in fit is easy to install and cuts down on air gaps for better insulation.

Insulation and Durability

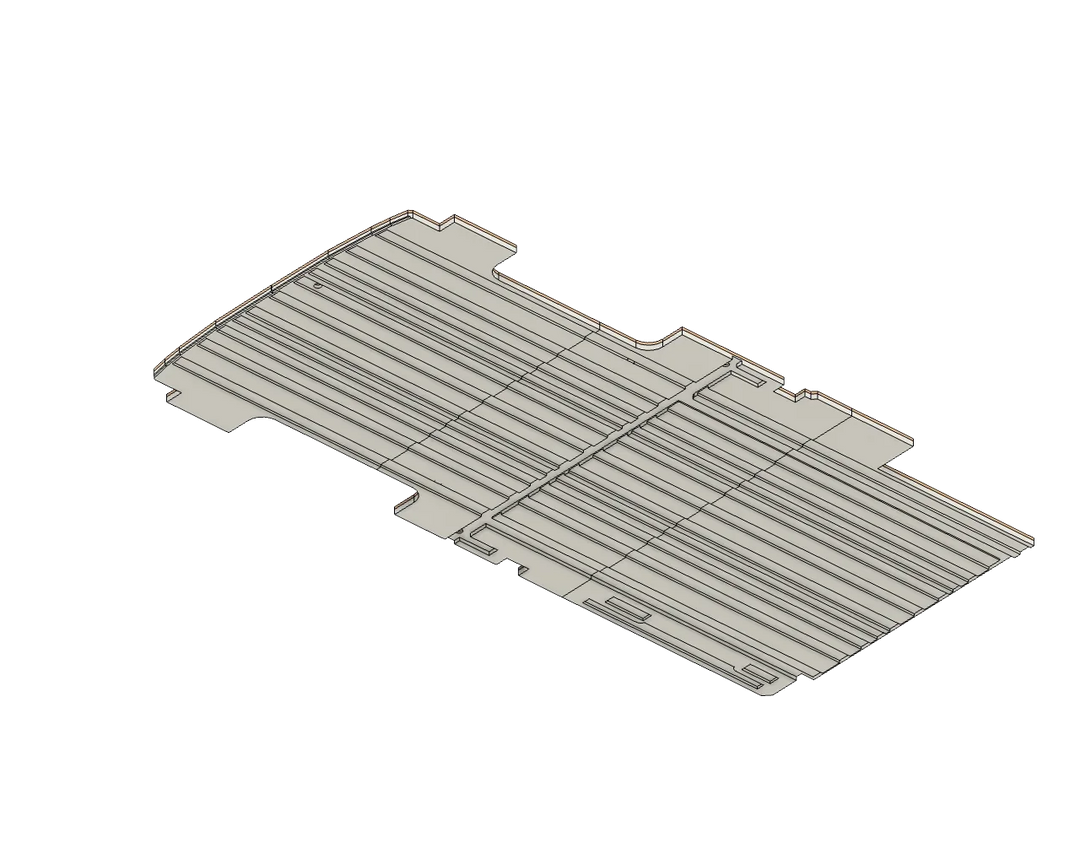

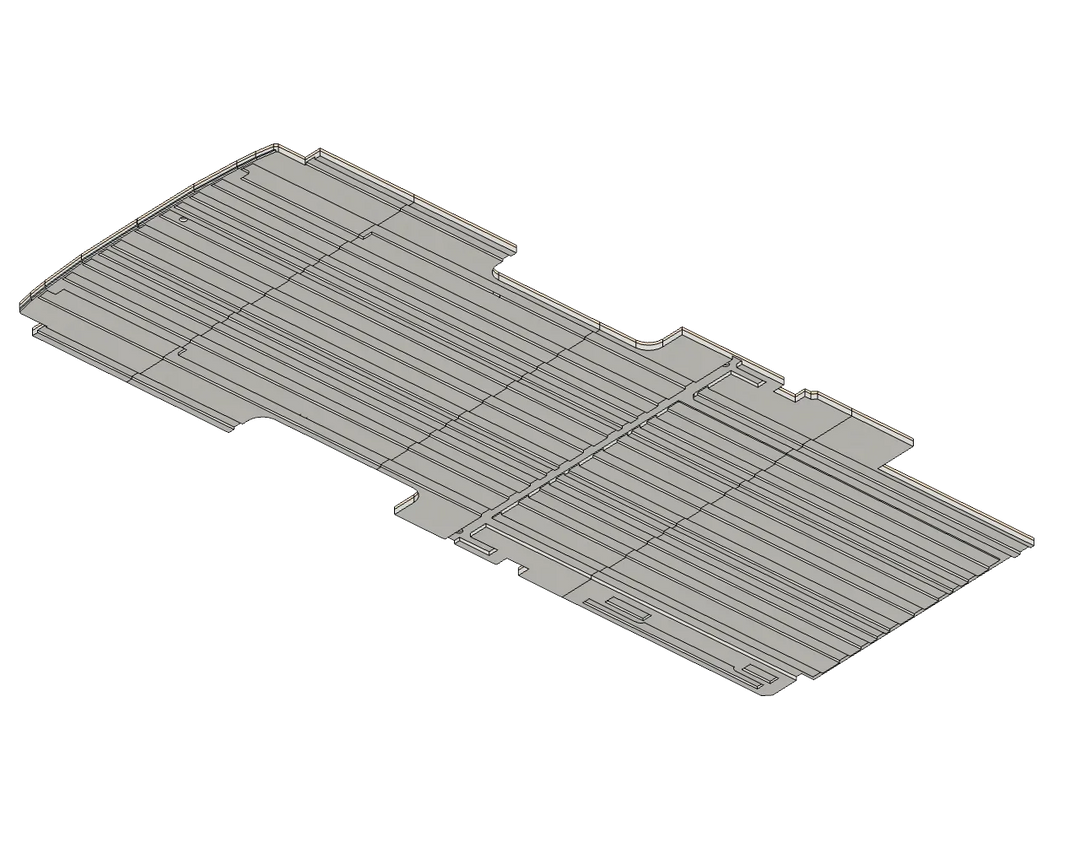

Our proprietary insulated panels are a sandwich of 12mm Baltic birch plywood and 1 inch polyiso foam, bonded with 3M 70 construction adhesive. The result is a tough base with an R-value of 6.6. We route grooves into the foam for fit, and the panels still insulate well, keeping your van warmer in winter and cooler in summer.

Height: about one inch above the top of the ribs.
Adhesive: one tube of 3M 550 sealant per panel is included.
Approx panel weights: 148 is 96 lbs, EXT is 116 lbs.

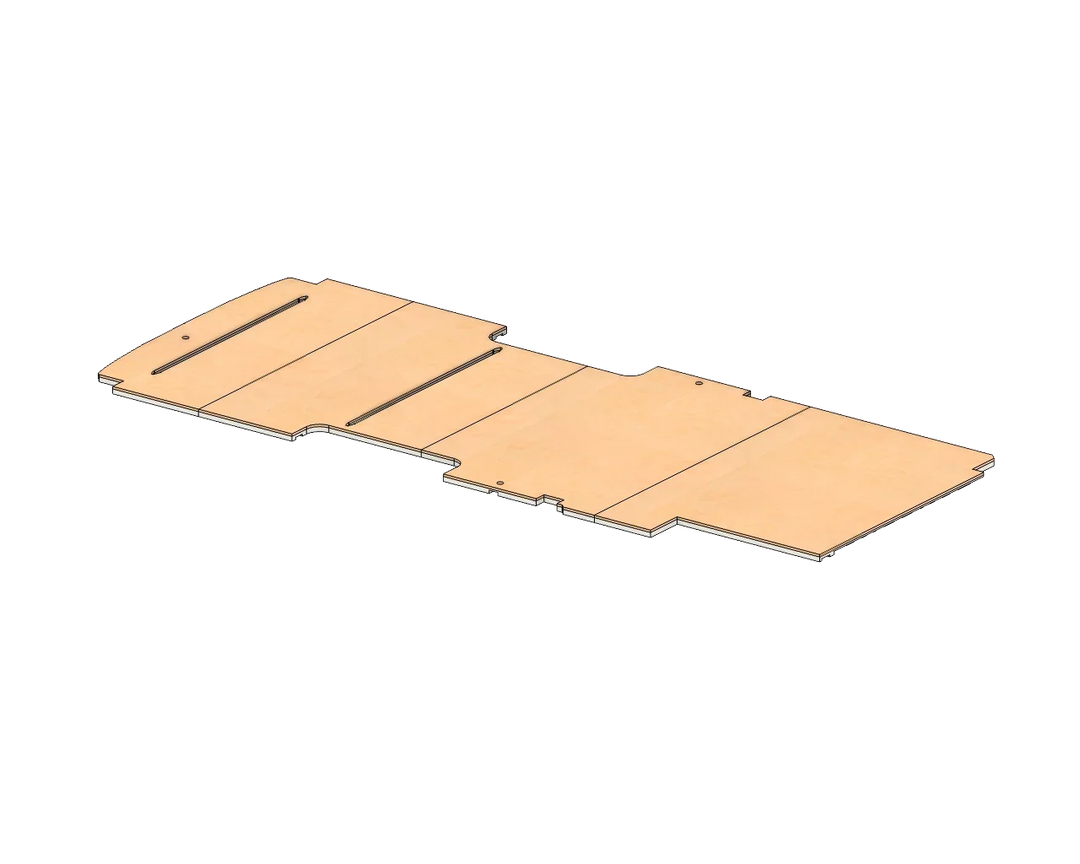

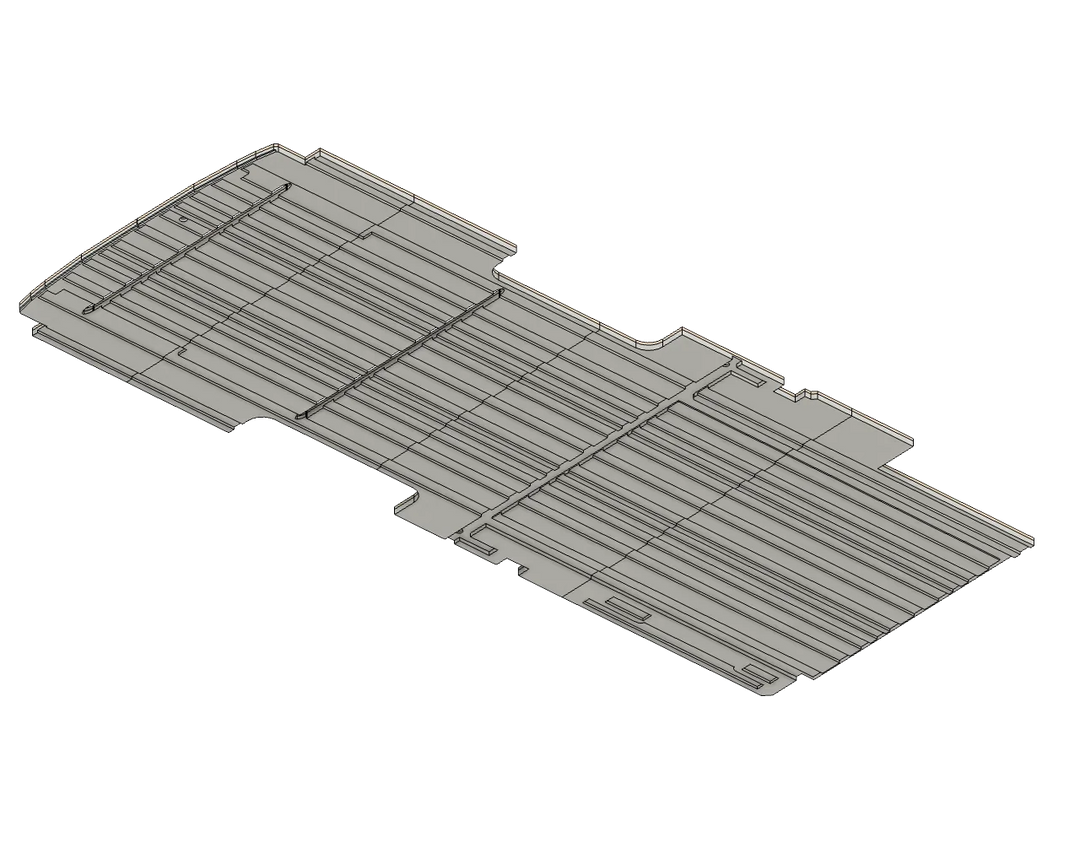

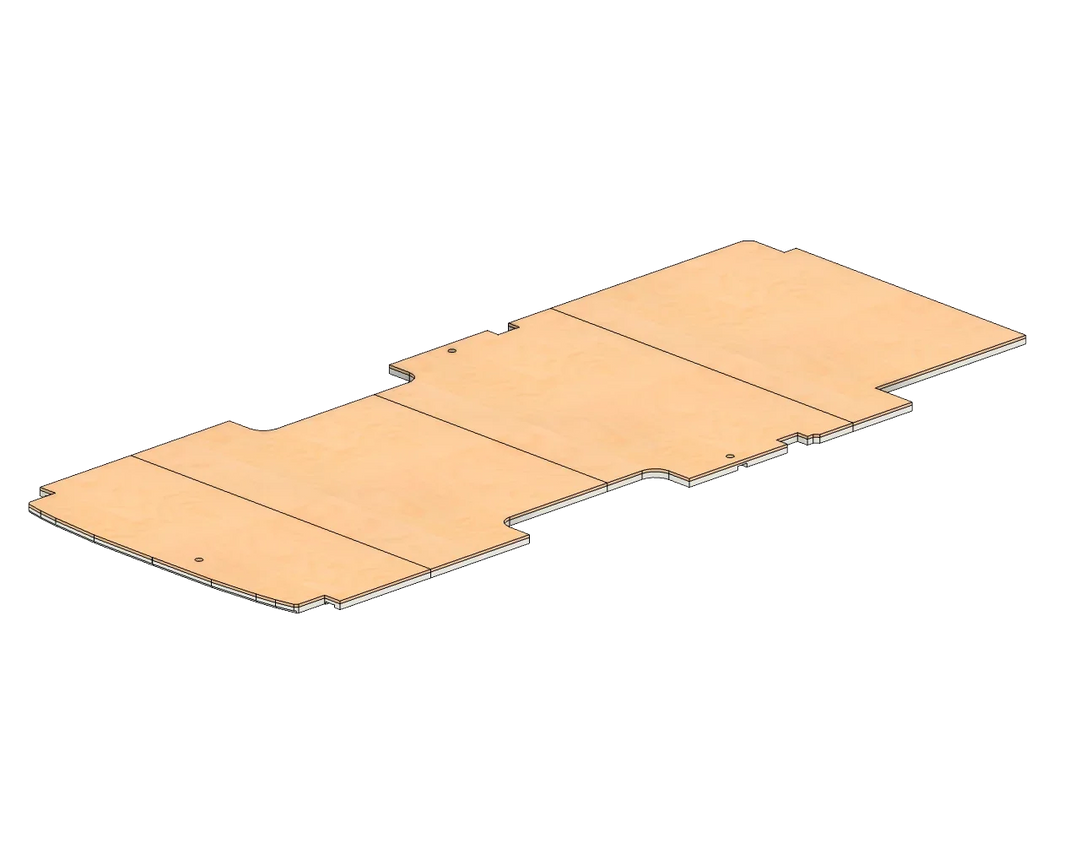

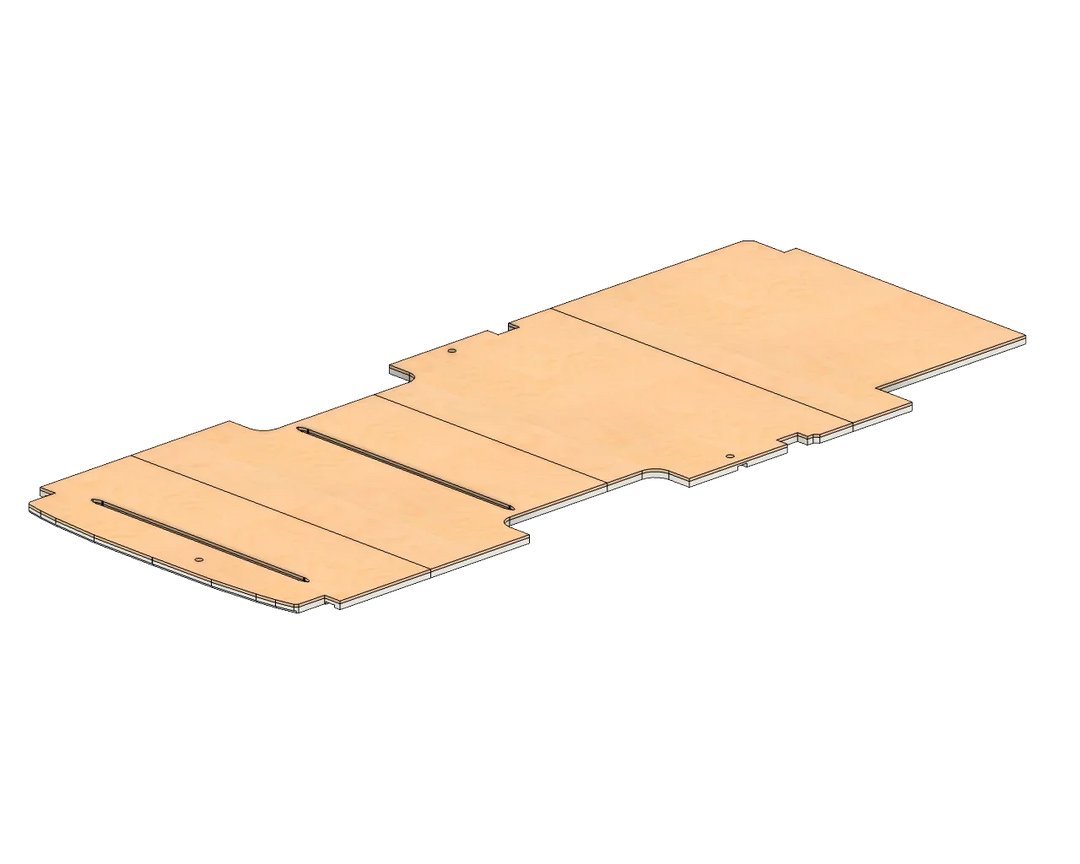

Options: cut for L-track, or solid with no L-track.
Lead time: built to order, 4 to 6 weeks.
Freight: $350 flat rate.

For over five years, this Transit insulated subfloor has been the foundation of every AVC RIG camper van build. Now you can build your own van with the same quality and confidence.

Finish the Floor

Note: this Transit insulated subfloor includes only the insulated floor panels. The step and trim kit is sold separately.

Order the Transit Floor Step and Trim.
Top it with 2Tec2 148, 2Tec2 148 Extended or Vinyl 148.
Compare every option in van flooring kits.

Watch the floor install video HERE.

*Patent pending. *Updated material construction as of 12.15.24. *Step and trim sold separately as of 9.10.25.
