Ford Transit Paper Patterns: Walls and Ceiling

AVC RIG Ford Transit paper patterns let you rapidly build wall panels in any material you want. The exact cut shapes come on full-size paper templates, so you get an easy, effective solution for your interior kit that ships conveniently across the country.

What the Ford Transit Paper Patterns Show

Details on the walls and ceiling templates:

• Exterior contour of all panels
• Ford factory 8mm threaded insert locations
• Ceiling light suggested patterning
• Ceiling rivnut suggested location
• Front driver side factory style window shape
• Slider door factory style window shape
• CRLVW1033 bunk window shape
• Rear doors have outlines for with or without windows

Options for Ford Transit Paper Patterns

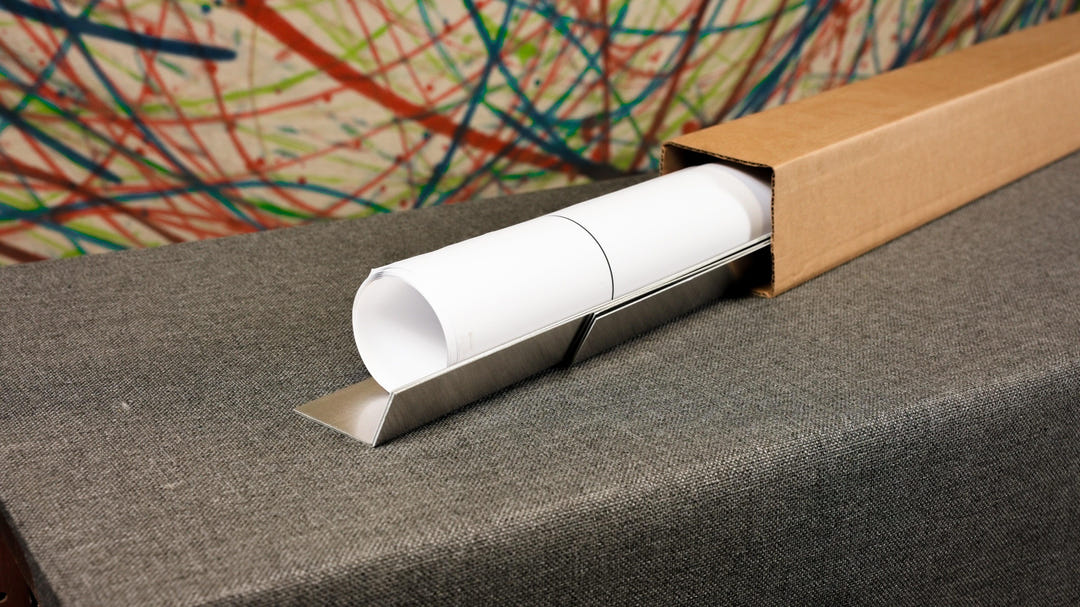

• The full wall kit includes walls, ceiling, rear/slider doors, and aluminum wall/ceiling supports.
• A ceiling only option is available if you just need the ceiling templates.
• Rear door and slider door panels are sold individually as well: see rear door or slider door paper patterns.
• Choose the templates that match your van: Medium Roof 148, High Roof 148 or High Roof 148 EXT.

How to Use Paper Templates for Wall Panels

Lay the Ford Transit paper patterns on your sheet goods, trace the panel contour, and cut. Because the templates mark the Ford factory 8mm threaded insert locations, your wall panels line up with the mounting points already in the van. The ceiling templates show a suggested light pattern and suggested rivnut locations, so you can plan wiring and fasteners before you cut the ceiling.

The window shapes are drawn on the templates too. That means your wall panels can follow the front driver side window, the slider door window and a CRLVW1033 bunk window without guesswork. On the rear doors, use the outline that matches your van, with or without windows.

Paper templates are a good fit if you want to use your own material or finish, or if you prefer to do the cutting yourself. If you would rather skip the cutting, see our pre-cut van wall and ceiling kits. Need the floor too? Grab the Ford Transit floor paper patterns.

The Ford Transit paper patterns are designed around the Ford Transit cargo van and made in the USA. Watch the video below to see how our wall panels and ceiling go together.
