Tetravan In-Floor Shower Pan STAINLESS STEEL
The Tetravan in-floor shower pan installs into the surface of your camper van floor, out of the way but hidden in plain sight. It is a more straightforward alternative to the Tetravan Folding Shower. AVC RIG carries it for builds with a dedicated shower spot.
How the Tetravan In-Floor Shower Pan Works

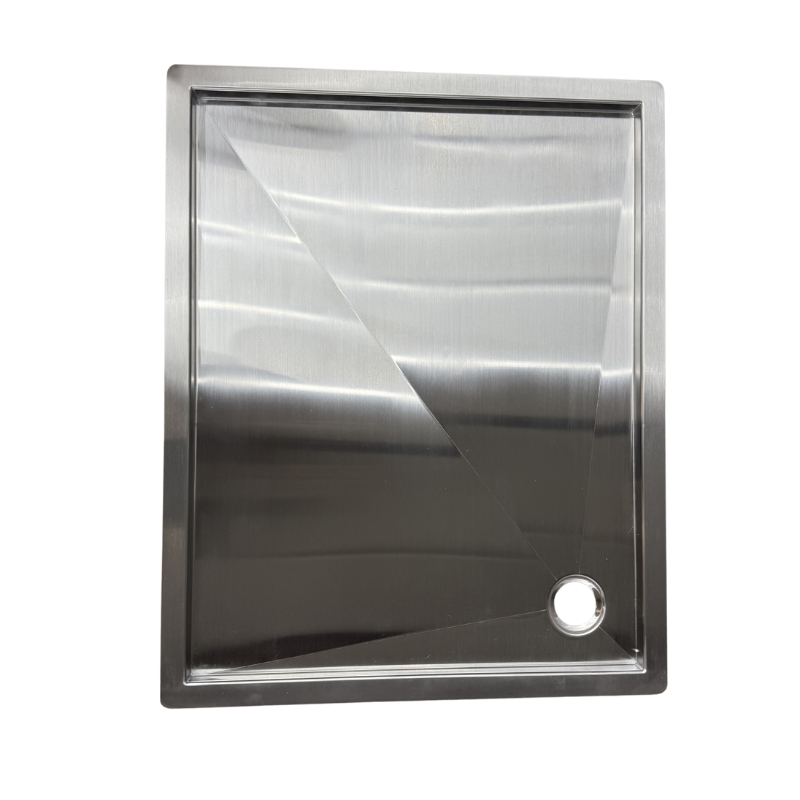

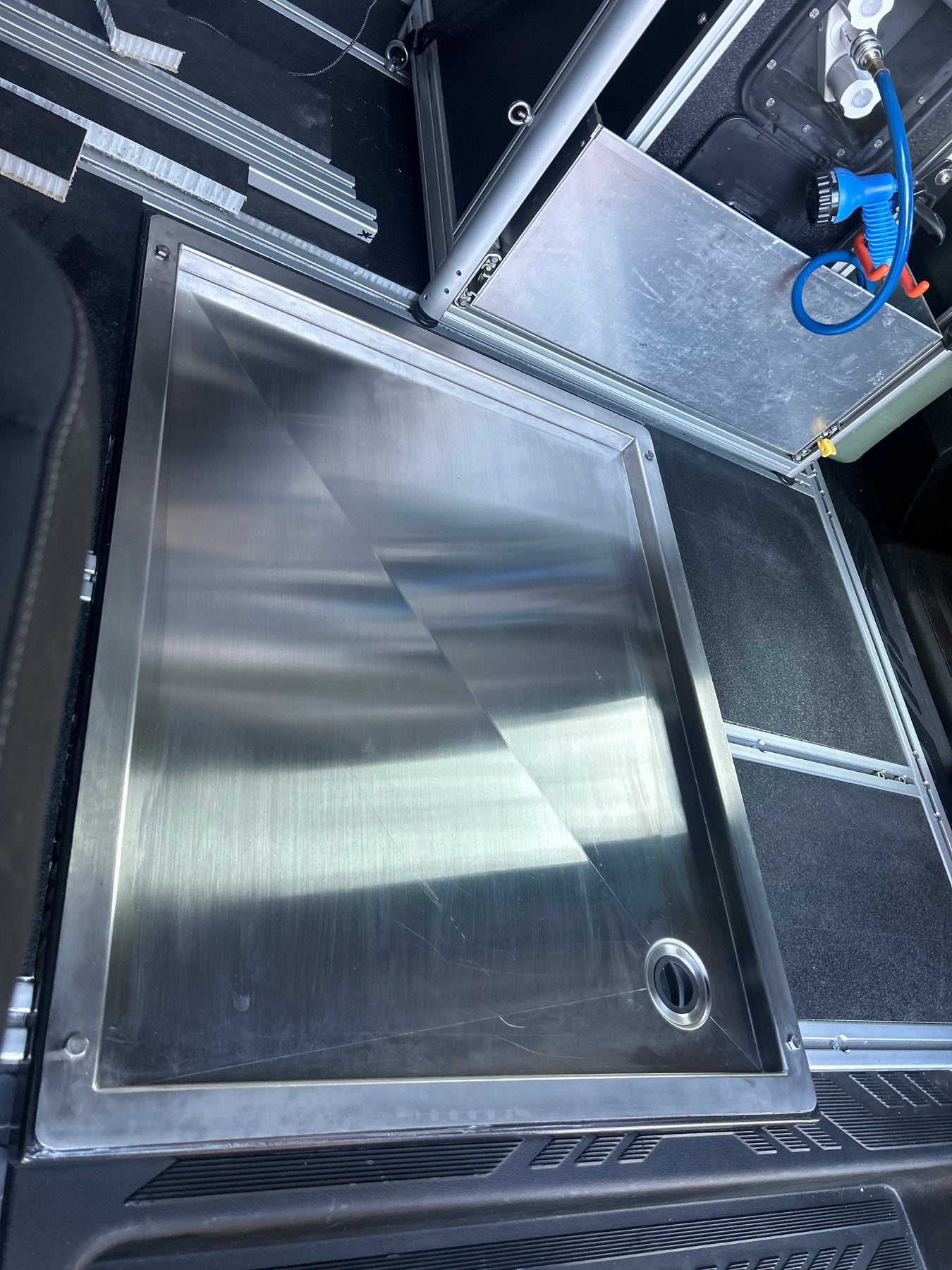

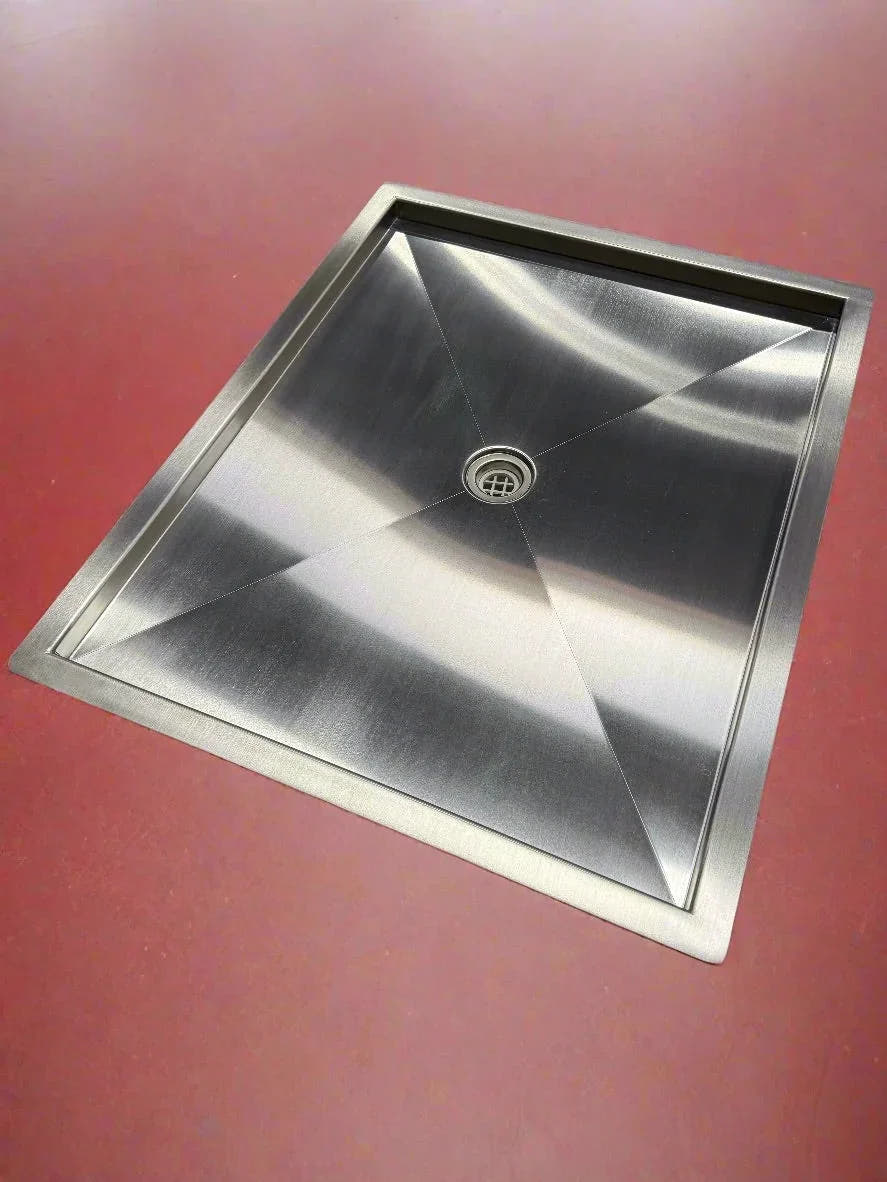

The magnetic brushed stainless steel pan is recessed into your floor. Installed, it sits slightly over 1" below the floor surface. That maximizes headroom, which is great for taller van dwellers. Attach the magnetic curtain to the pan edge, shower, then walk over it the rest of the day.

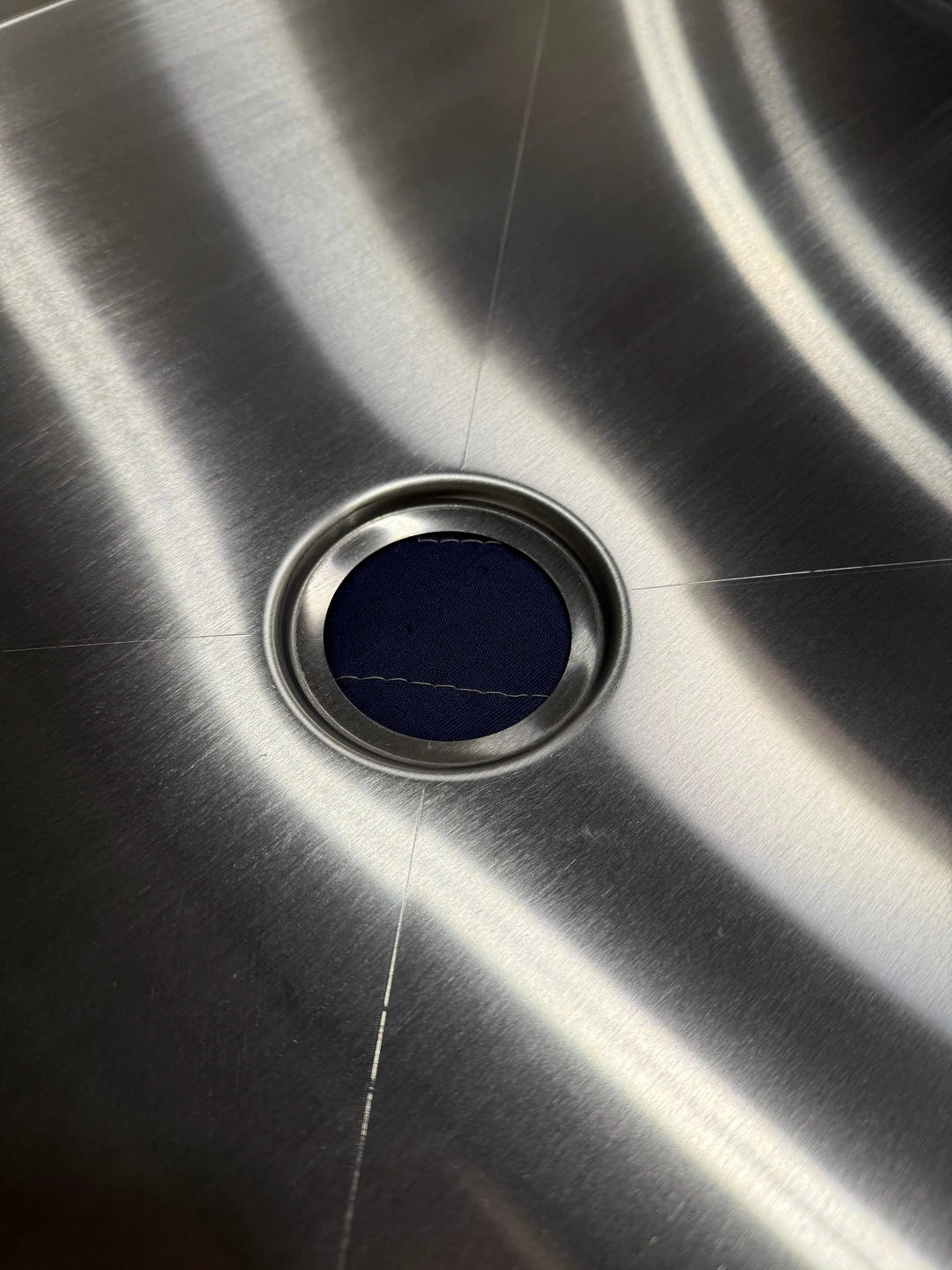

The Tetravan in-floor shower pan needs at least 1.3" of subfloor depth. A cross break in the bottom and a recessed drain hole direct water to the included drain fitting.
Specs

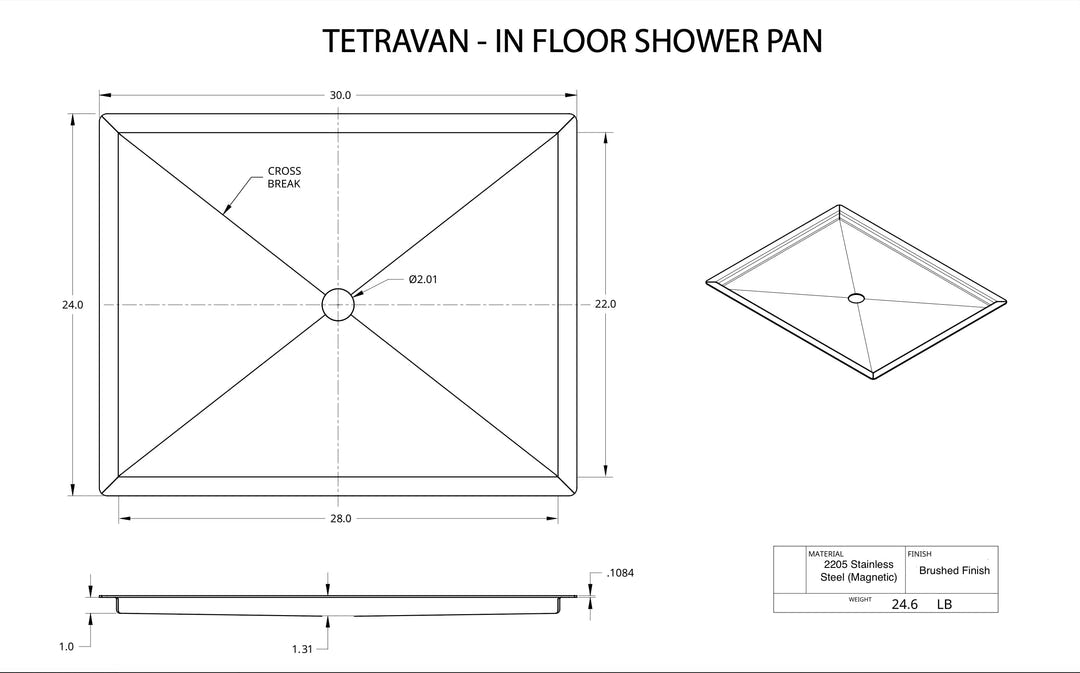

- Overall 30" x 24" with a 28" x 22" recessed interior
- 1.31" deep, 1" flange, 2.01" center drain opening
- Minimum 1.3" of subfloor depth required
- Weight: 24.6 lb
- Brushed 2205 duplex stainless steel, anti-corrosive and magnetic
Includes
- Tetravan in-floor shower pan

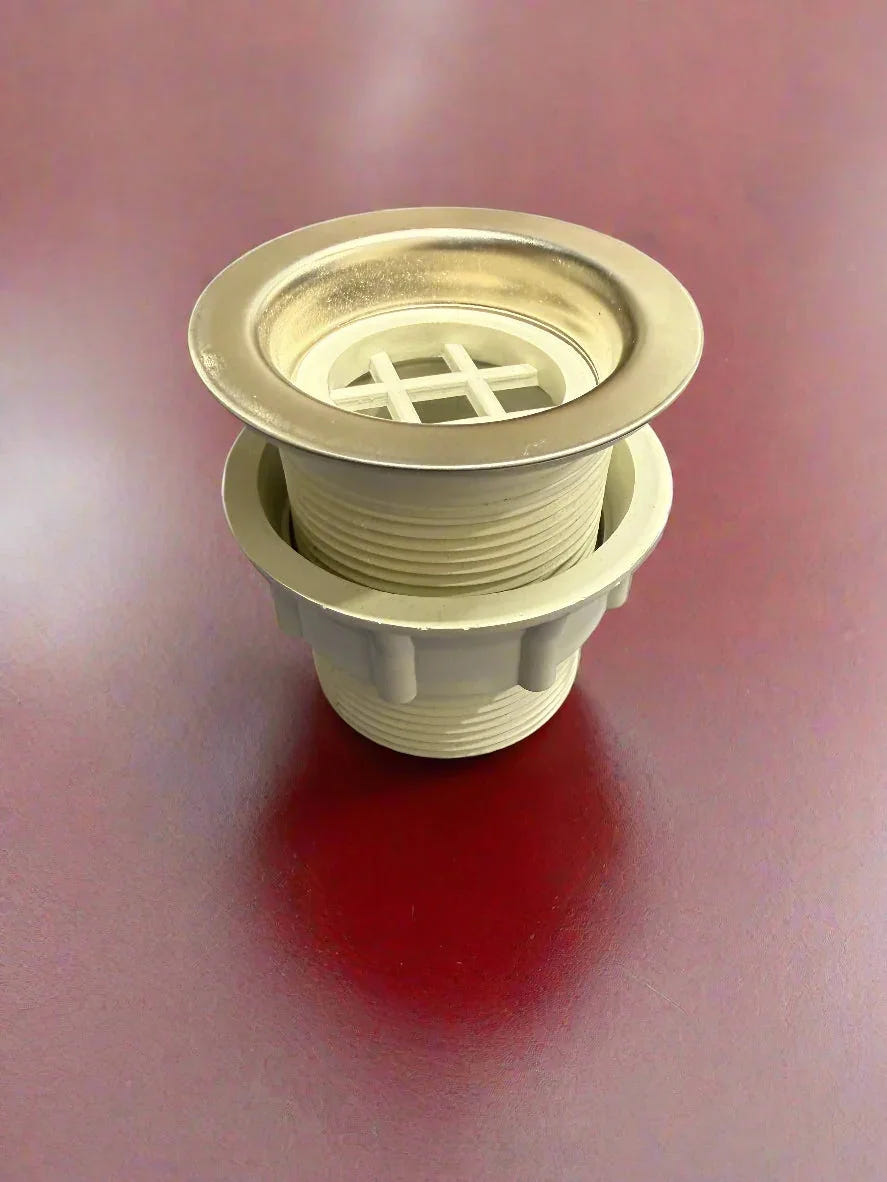

- 1-1/2" threaded straight drain
- (Optional) Tetravan Universal Shower Curtain, a magnetic waterproof ripstop curtain sized for this pan (71" tall)
The Curtain

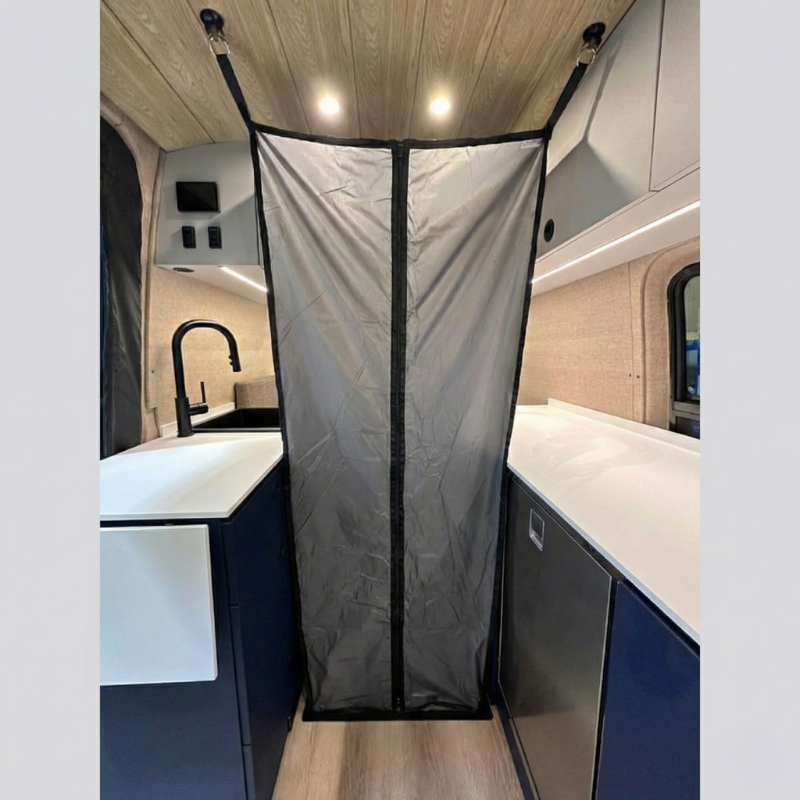

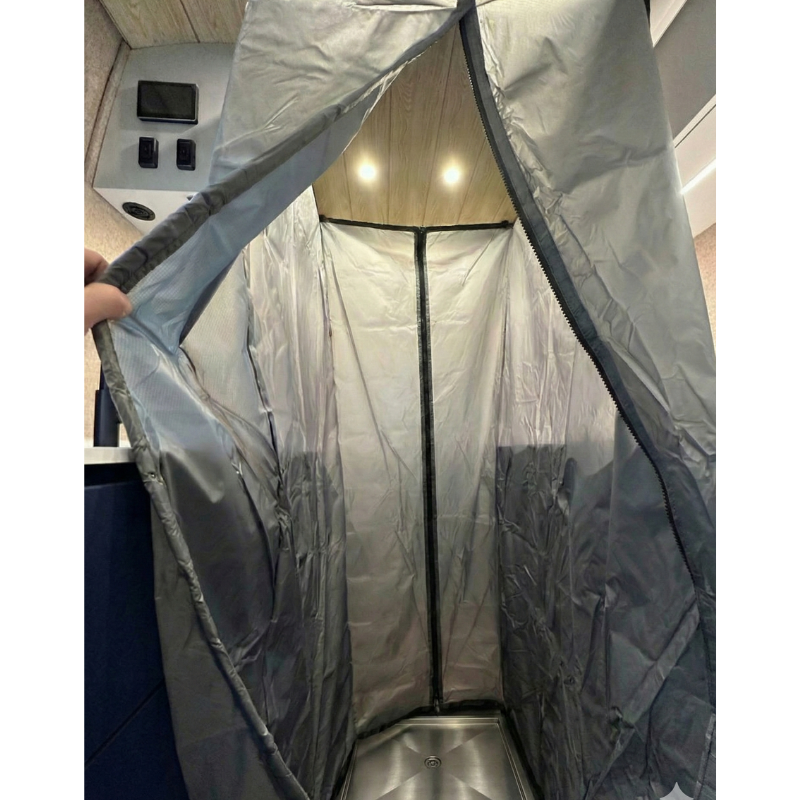

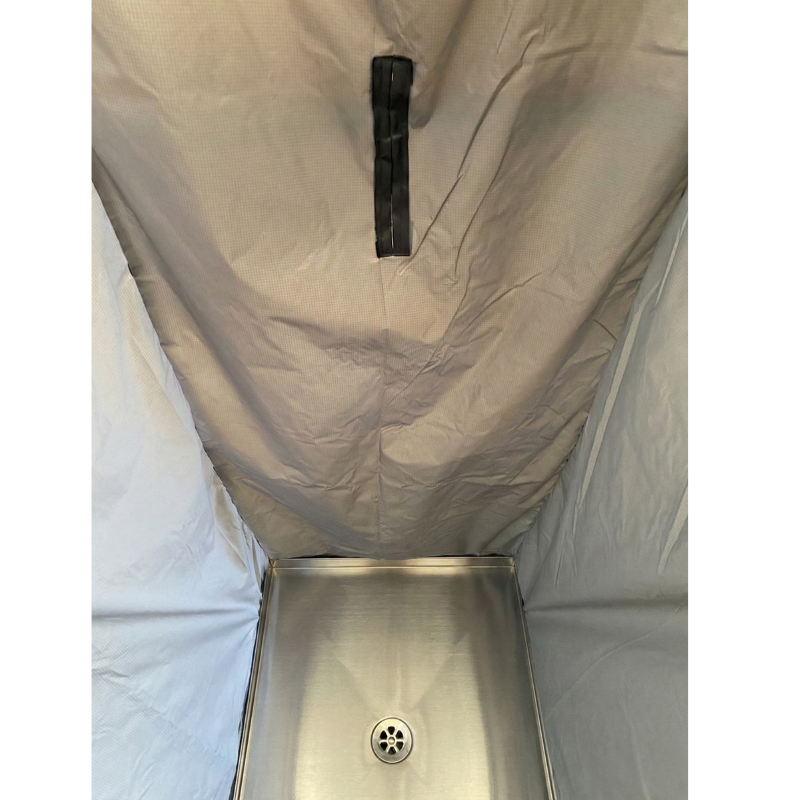

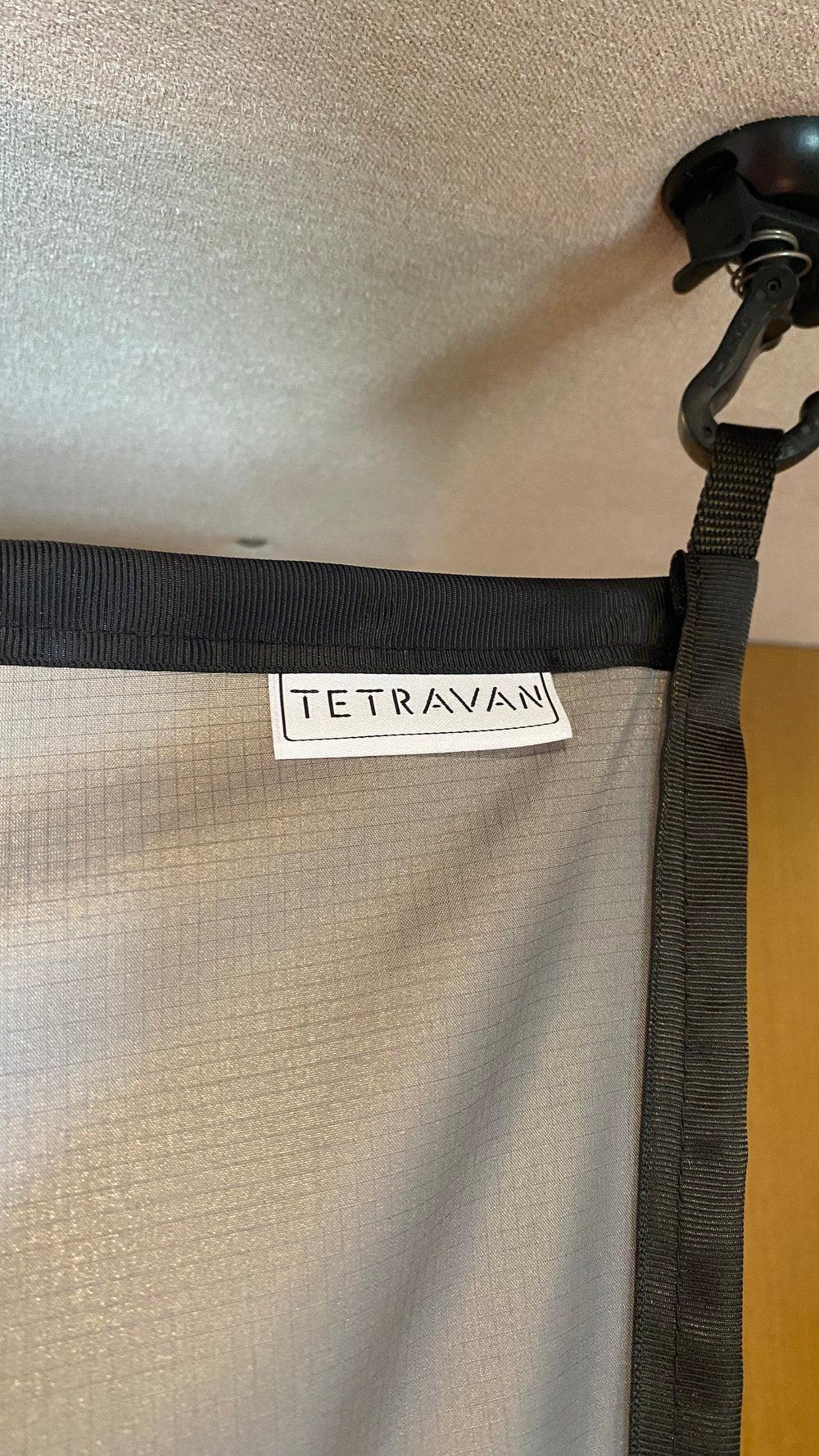

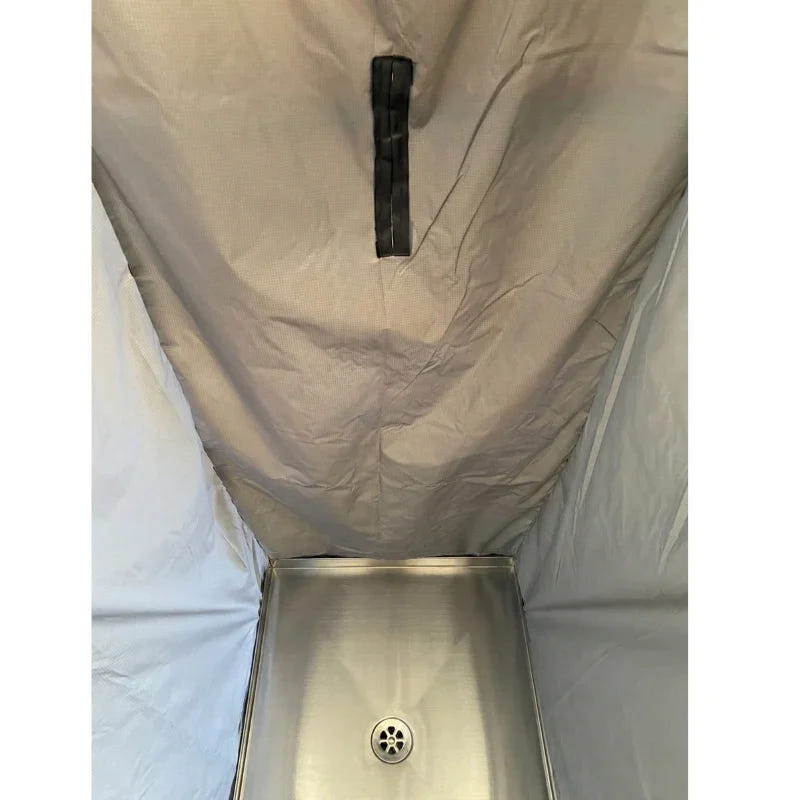

The curtain has 3/8" tall magnets sewn into the bottom edges. They attach to the inside edges of the pan. A water-tight zippered front closure makes getting in and out easy. The curtain widens to over 30" toward the top for shoulder space. It is 71" tall and extends to roof height with 6" extenders like these. Loops and grommets at the top allow adjustable mounting heights.
Drain Options

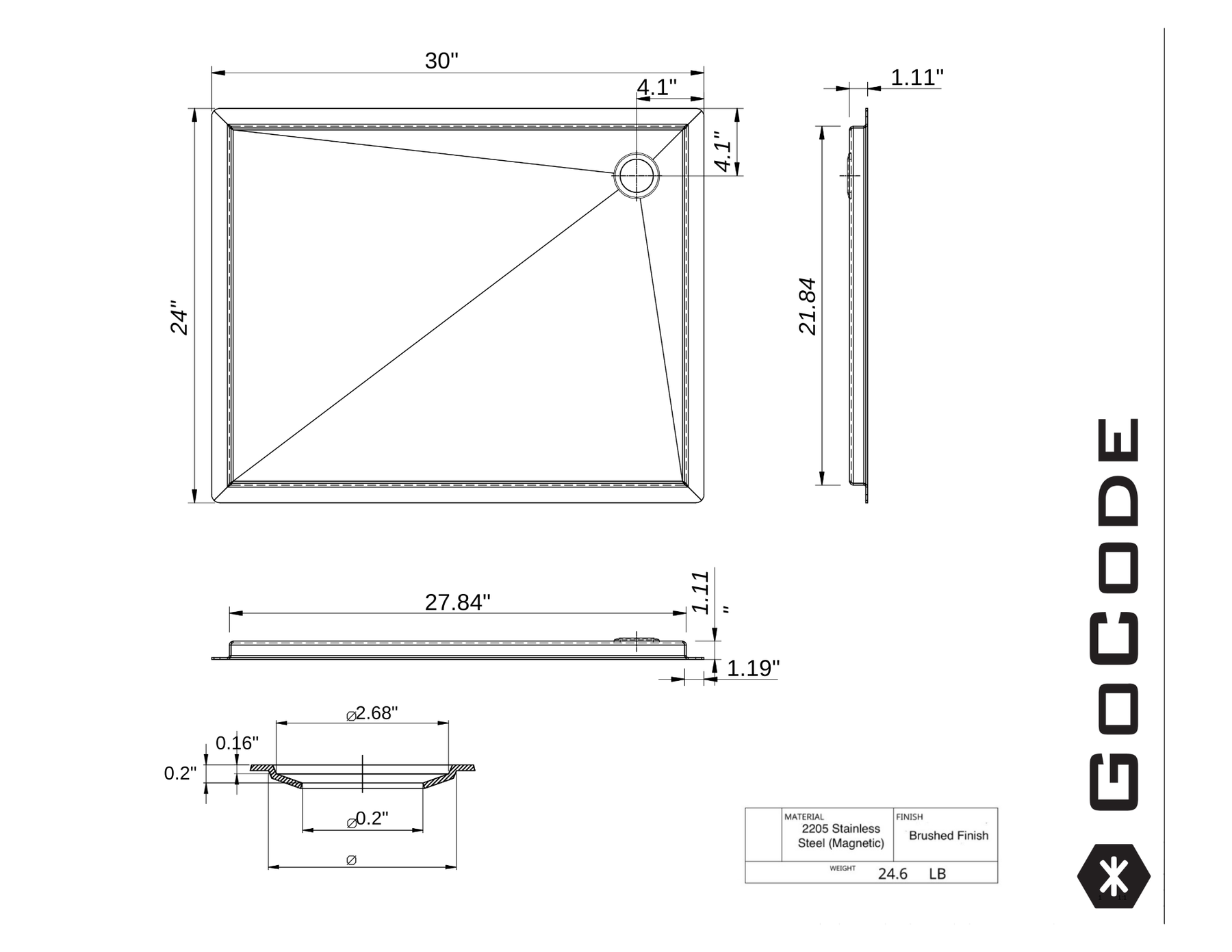

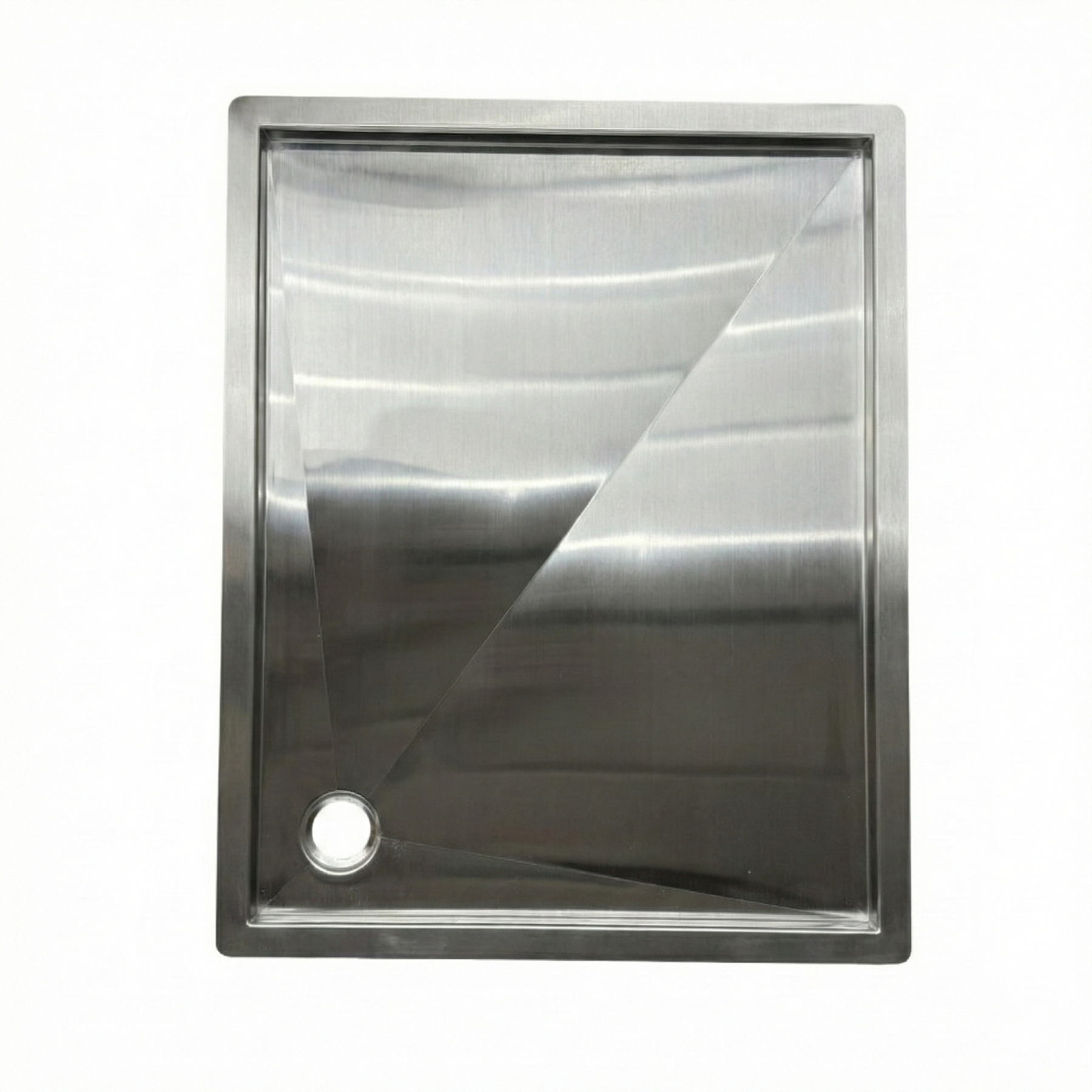

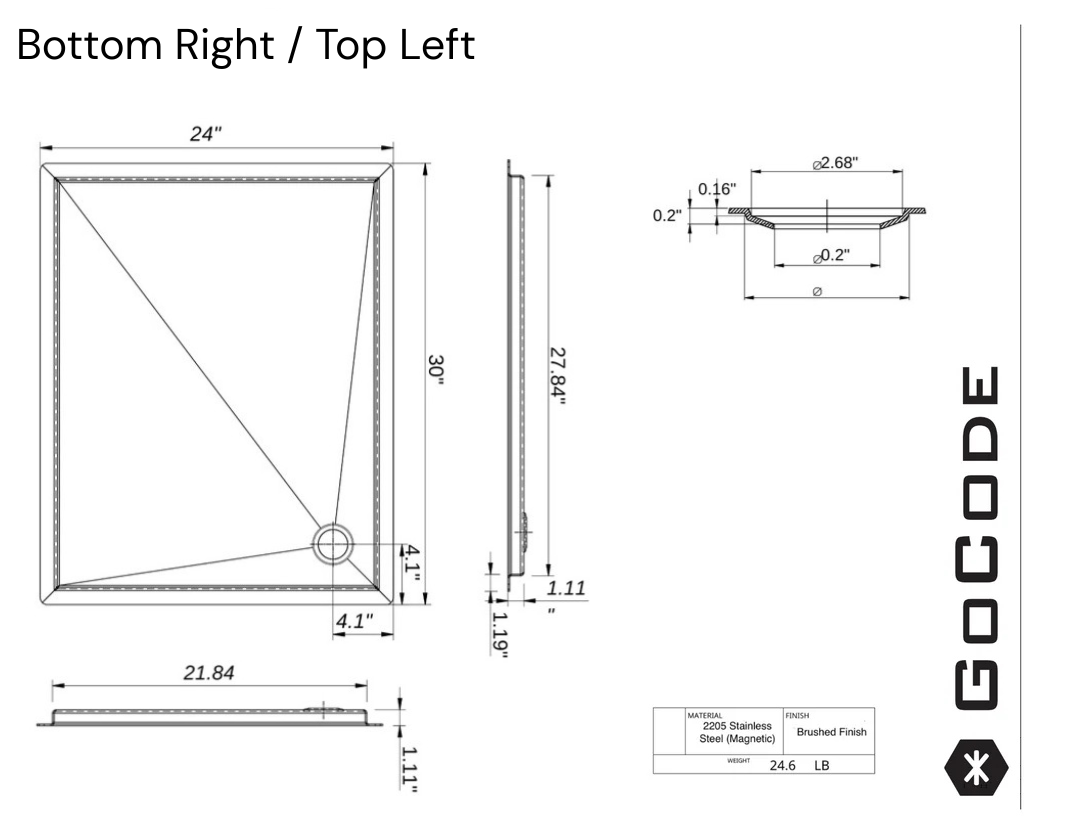

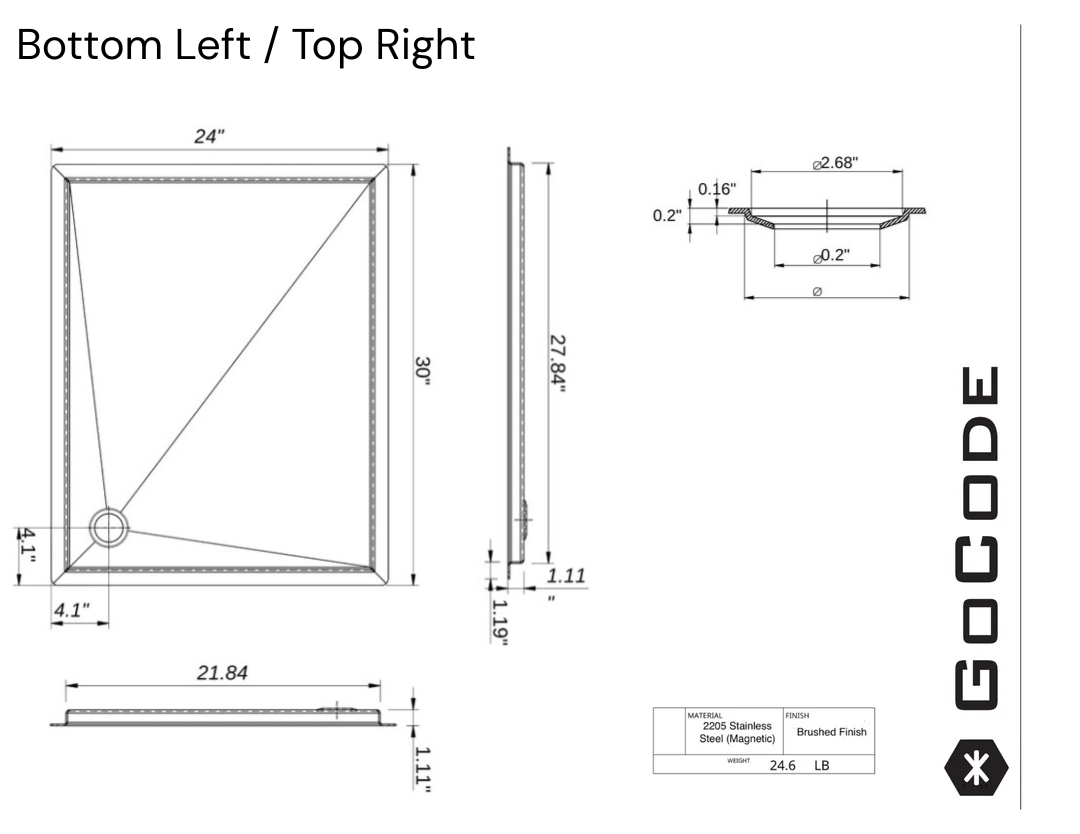

Choose Center, Bottom Right / Top Left, or Bottom Left / Top Right. These options help you avoid factory crossmembers or fuel tanks under the van. Rotate the pan to put the drain where your build needs it. Route the drain to your grey tank.
Important Notes
Your van needs to be level for this product to work. A Dodge Promaster comes stock sloped downward in the front, so you will need a leveling kit.

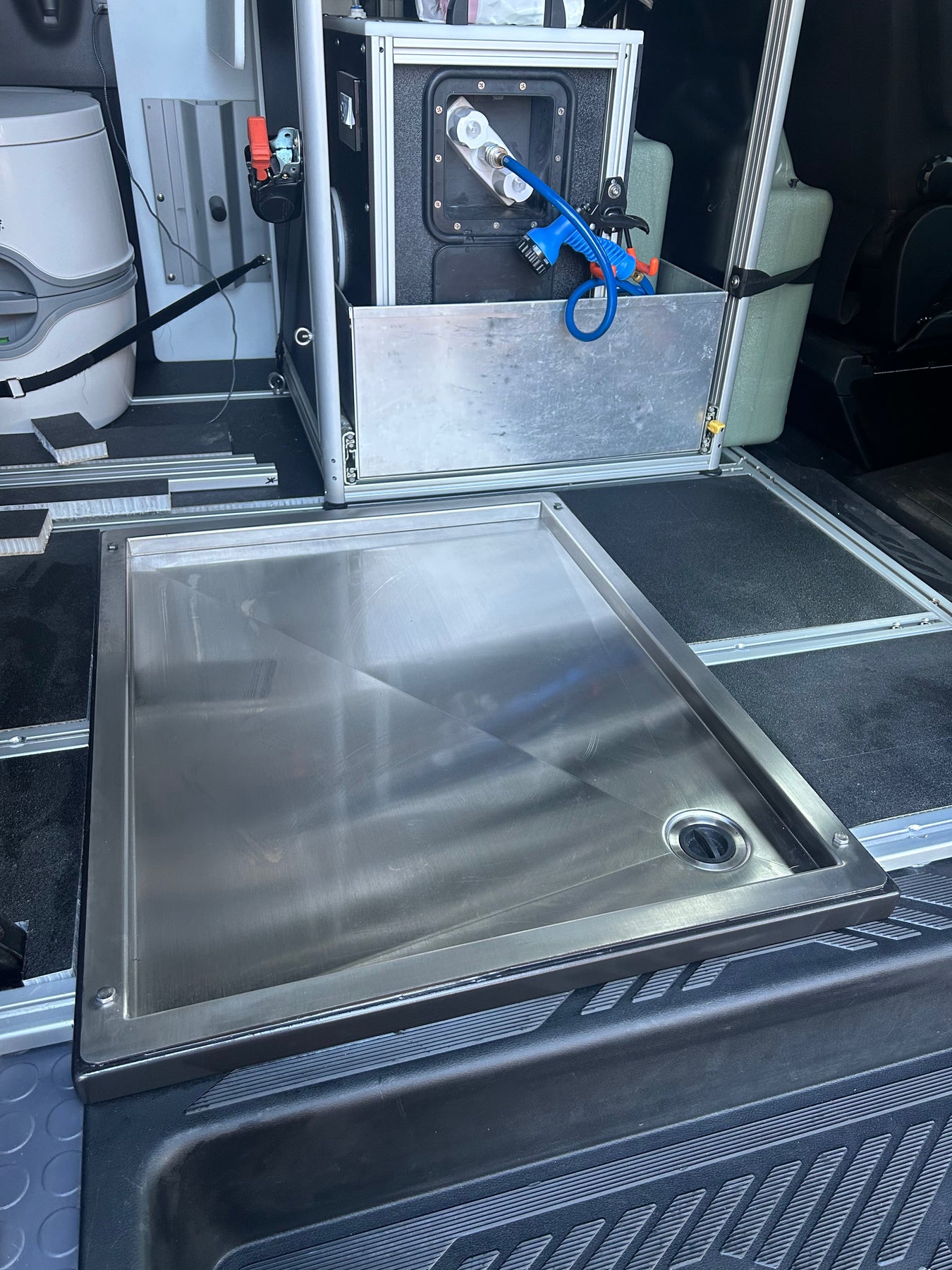

To install, use a purpose-appropriate adhesive on the underside of the flange. Add at least 1" long countersunk screws through the flange into the subfloor.
Tetravan ships to the contiguous US, Canada and select European countries. For other countries, email contact@pundmann.de. International orders may owe customs or duties.
