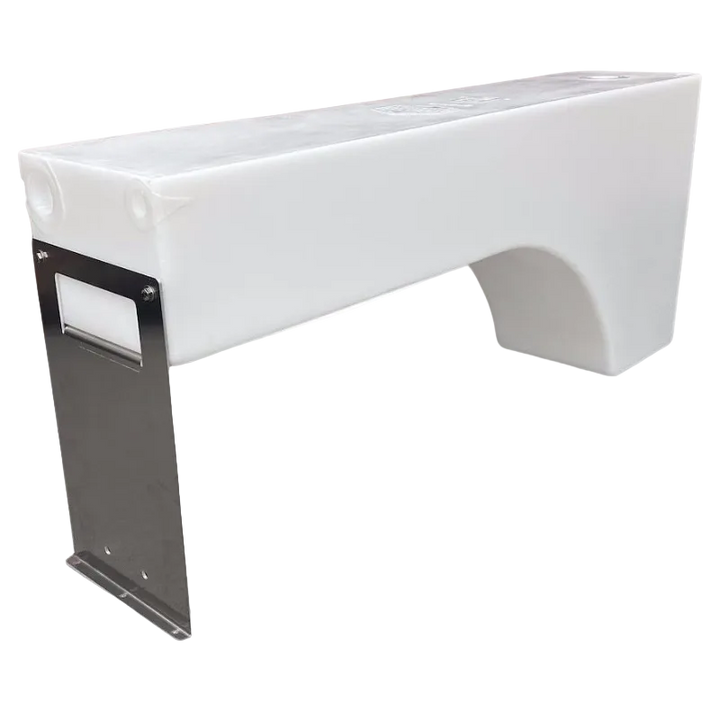

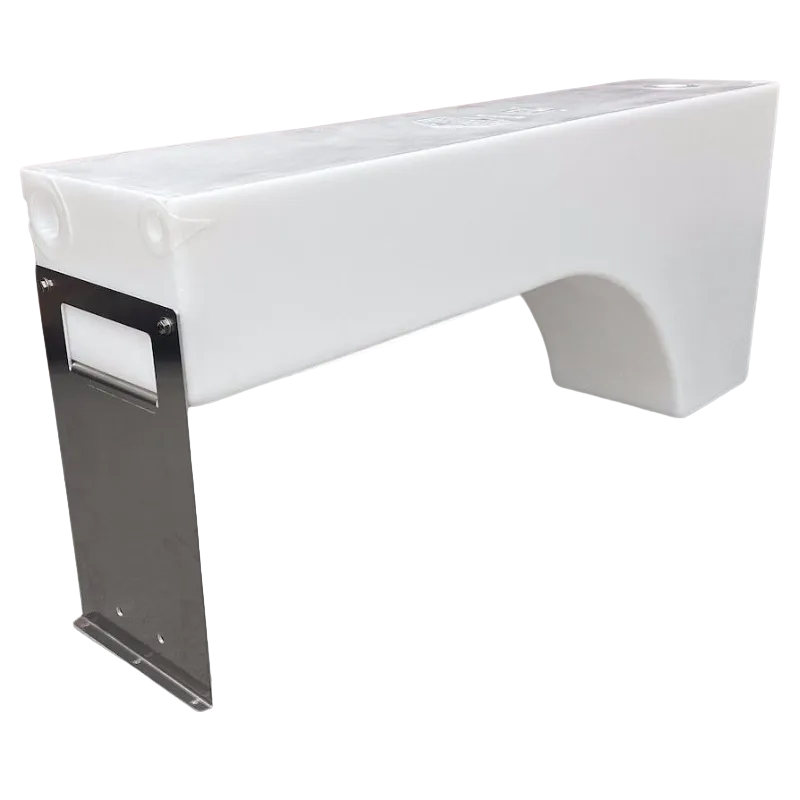

19-Gallon Slim Dually Wheel Well Water Tank (SP-DU-19)
The 19 gallon dually water tank (SP-DU-19) is designed specifically for dual rear wheel vans. AVC RIG carries this NW Conversions tank from GoCode.
About the 19 Gallon Dually Water Tank

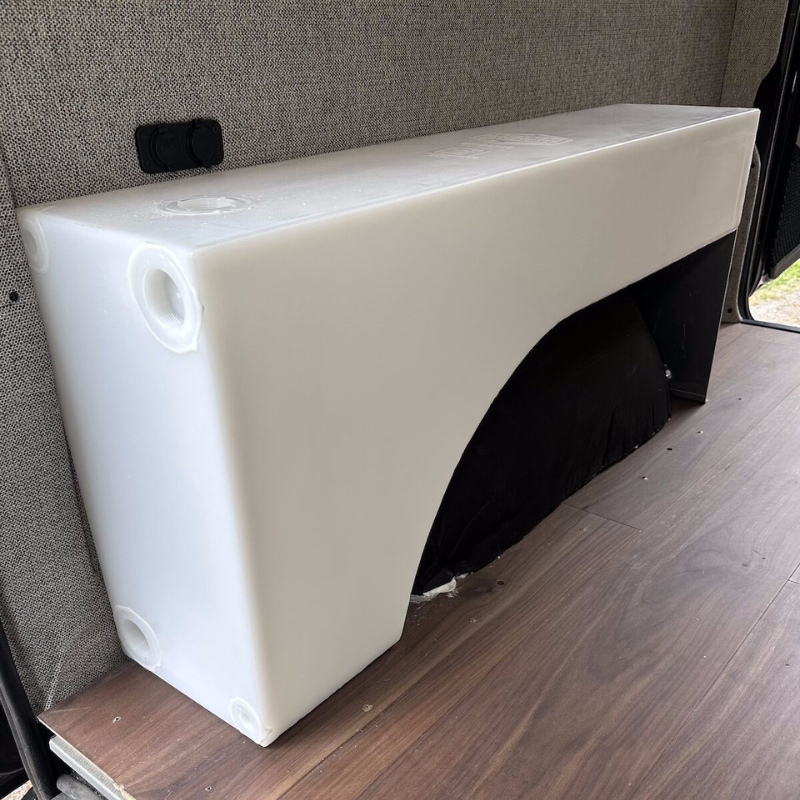

This slim tank fits the wheel well space without taking up any width between the wheel wells. That leaves the full width free for cabinetry or gear storage.
19 Gallon Dually Water Tank Specs

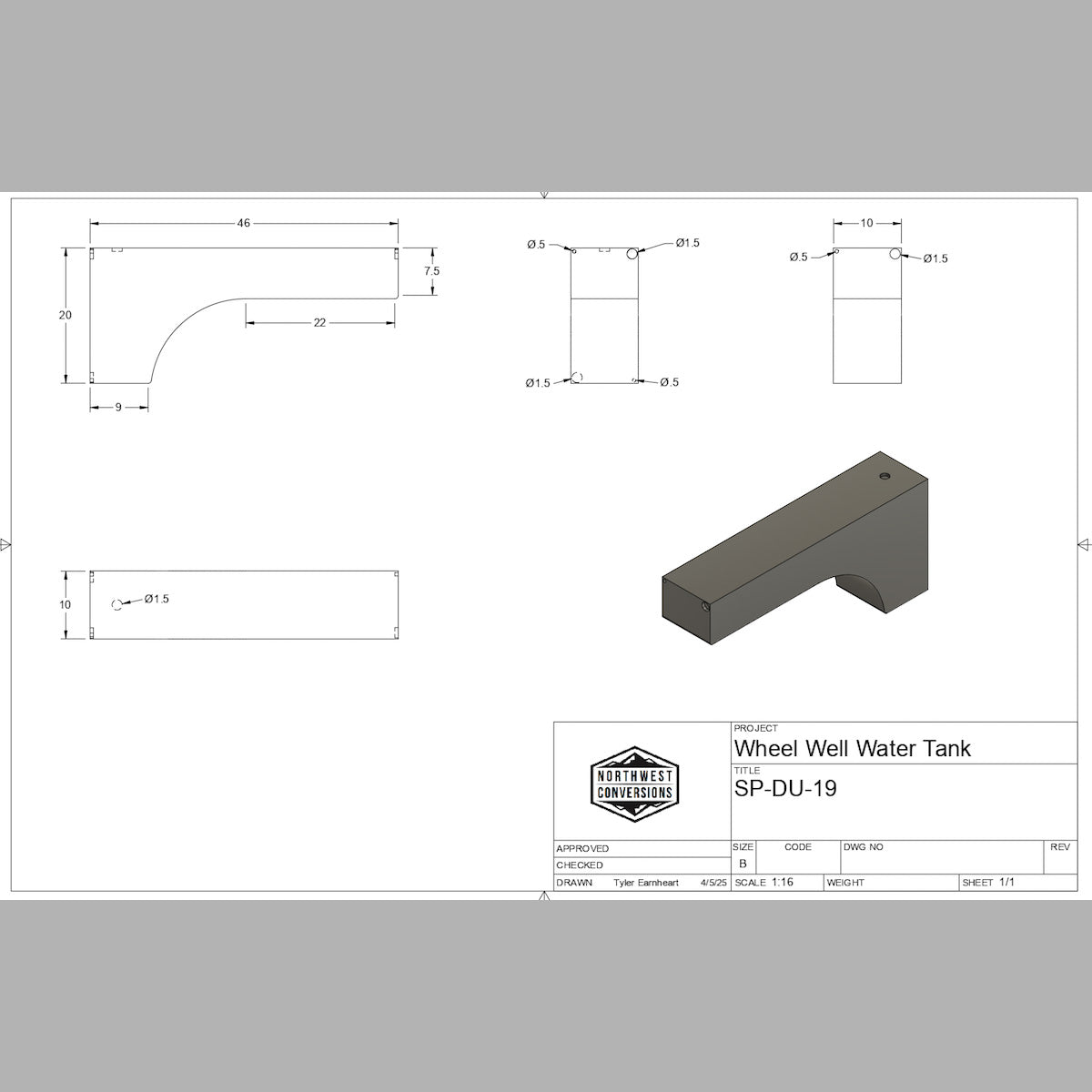

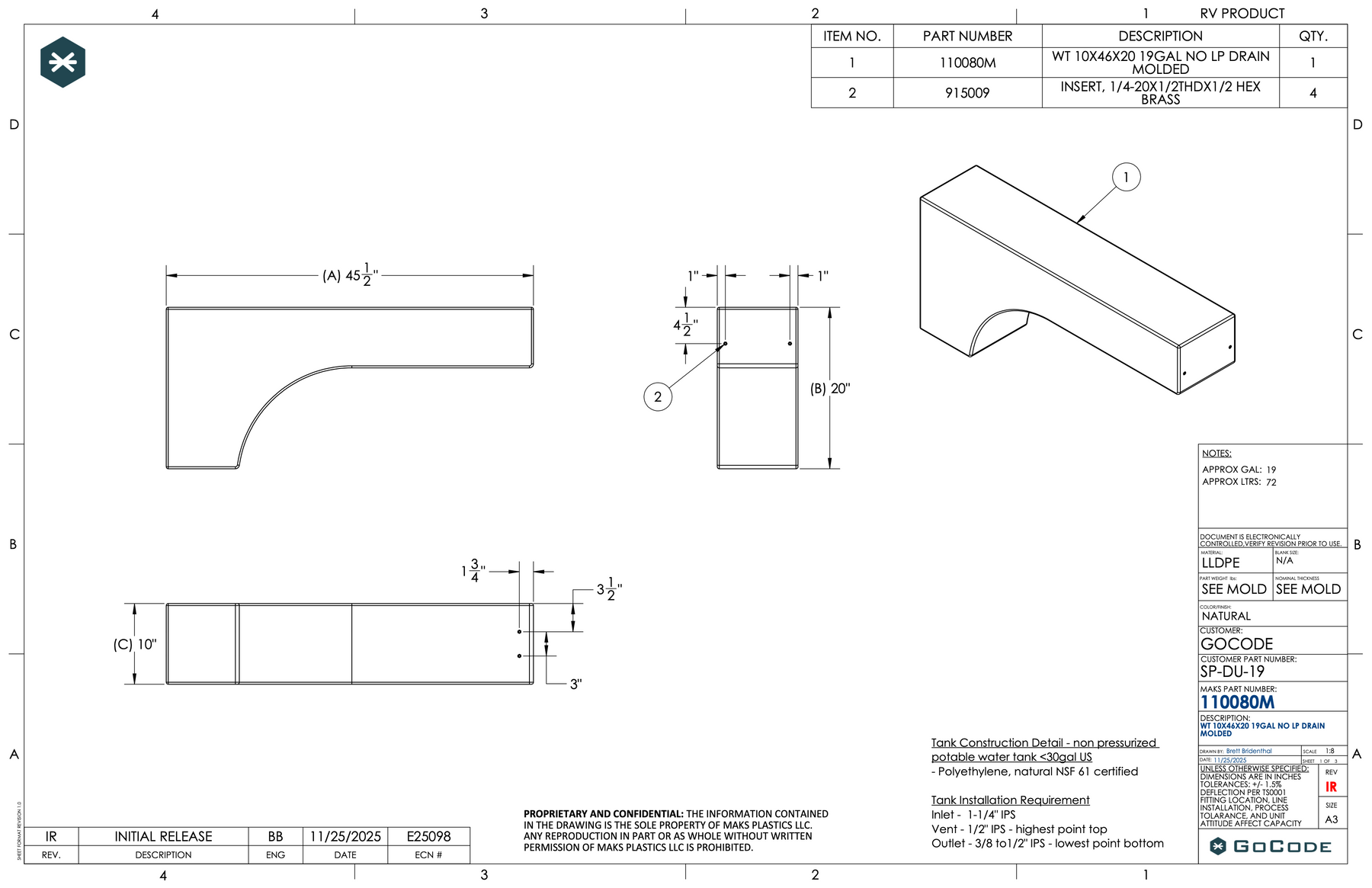

- Nominal dimensions: 45.5" L x 10" W x 20" H (actual dimensions may vary up to 1.5% each)
- Capacity: 19 gallons
- Dry weight: 20 lbs
- Filled weight: 178 lbs
- Recommended sensor: KUS S5U-19
- Recommended heating pad: Facon CW-T825
- Not designed for pressurized systems, must be vented
Materials and Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
- TEi listed and RVIA approved

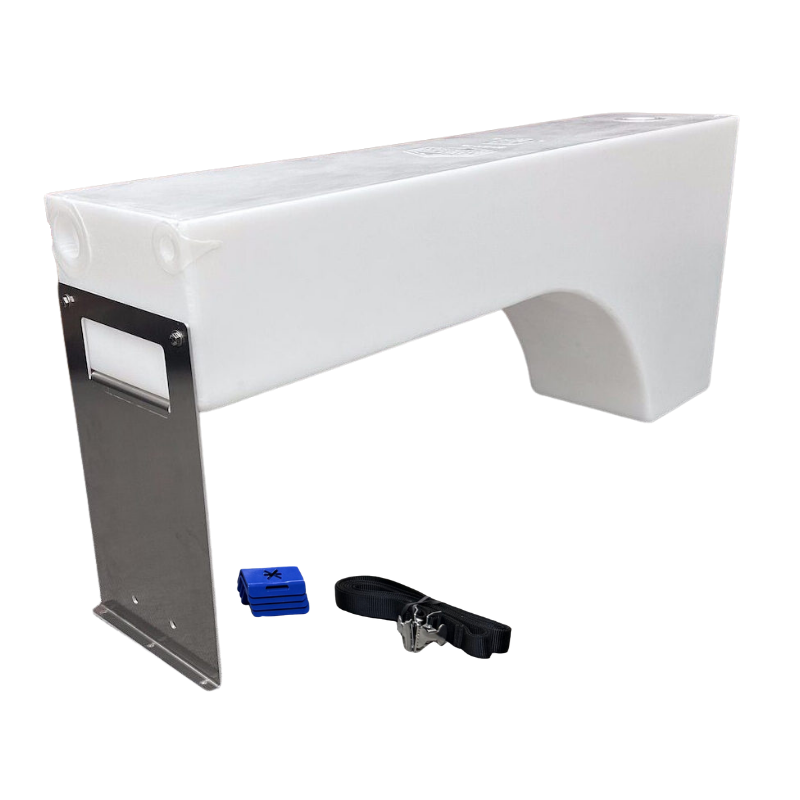

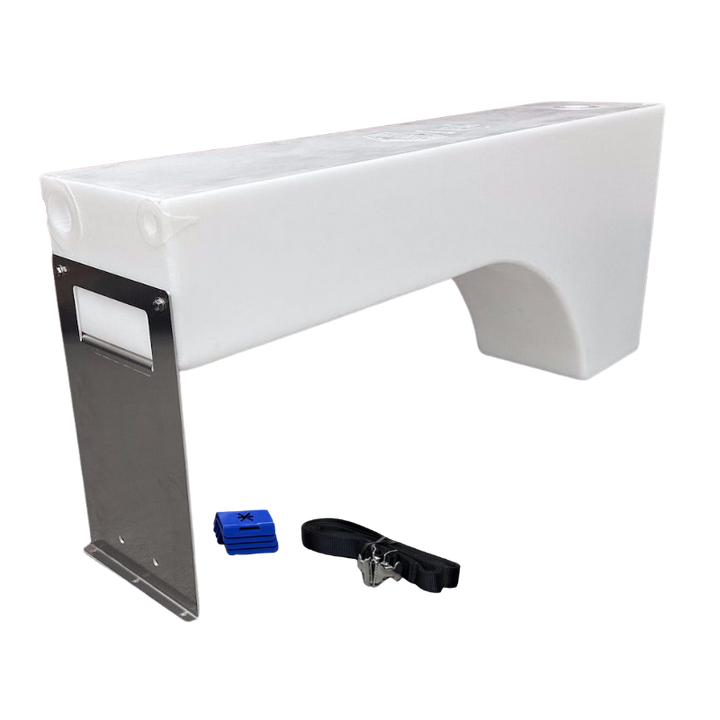

What's Included
- Water tank
- Support plate and mounting hardware included with every order
Ports and plumbing:
- (2) 1.5" NPT ports on the larger end, pre-marked, drill out to use
- (2) 1/2" NPT ports on the larger end
- (1) 1.5" NPT port on the end above the wheel well, pre-marked, drill out to use
- (1) 1/2" NPT port on the end above the wheel well
- (1) 1.5" NPT port on top, pre-marked, drill out to use
Compatibility
- Sprinter 2500 and 3500 dually direct fit (also fits Sprinter T1N)
- Transit 2500 and 3500 dually fits with slightly more room around the wheel well for insulation
- ProMaster requires approximately 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models

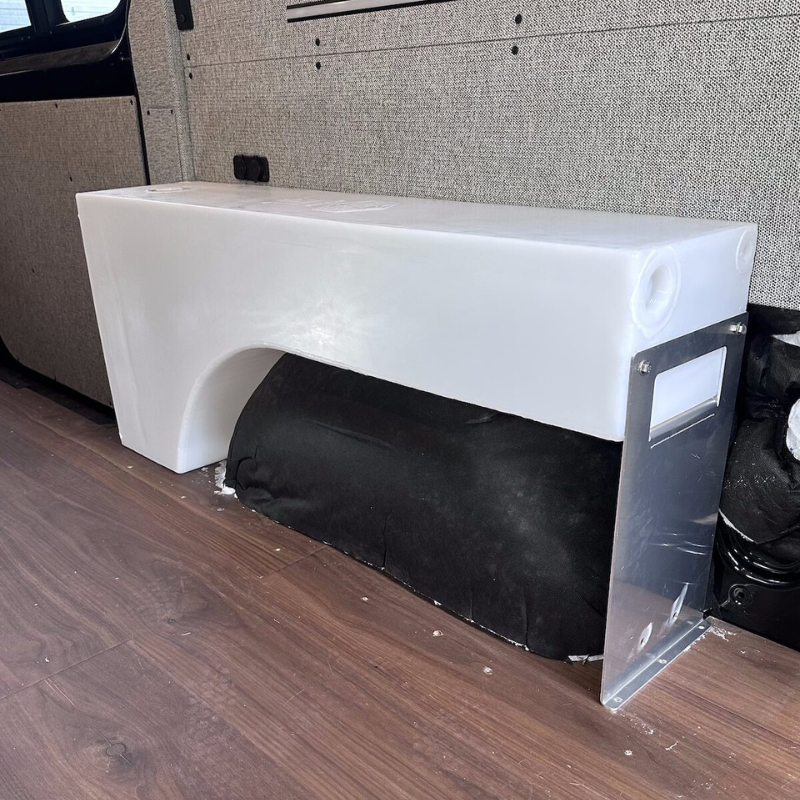

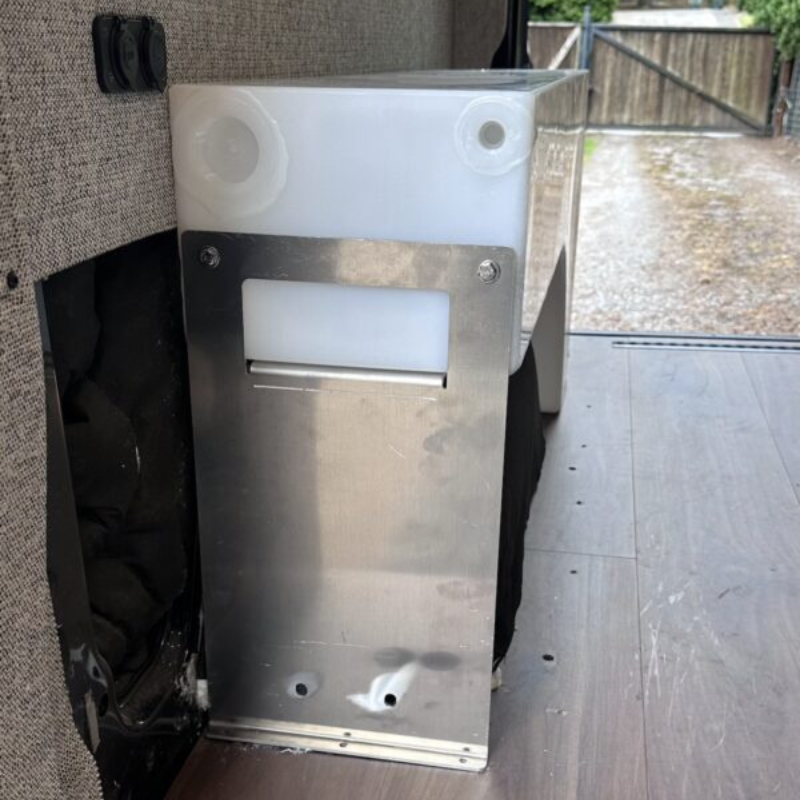

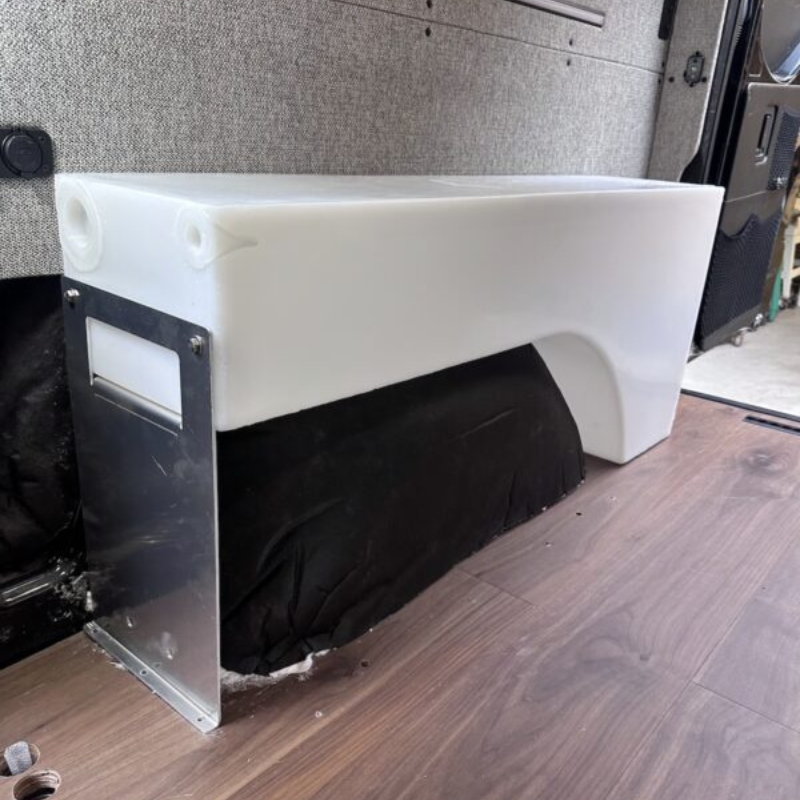

- Can be placed on either driver or passenger side, in front of or rearward of the wheel well
Planning Your Water System
The 19 gallon dually water tank is not designed for pressurized systems, so plan a vent. Filled, it weighs 178 lbs, so plan your mounting around that weight. Drill out only the pre-marked NPT ports you need. Decide if it sits in front of or behind the dually wheel well before you lay out cabinets.
Shipping and Lead Time
Ships in 1-2 business days.
Note: Despite great care during manufacturing and fulfillment, plastic tanks can get dirty or scuffed in transit. This does not mean the tank is damaged. Plastic tanks can also warp slightly, especially on flat surfaces. This is normal and does not make the tank defective. A perfectly flat surface on a rotationally molded part is not always possible. Every effort is made to keep surfaces within a 1.5 degree tolerance.
