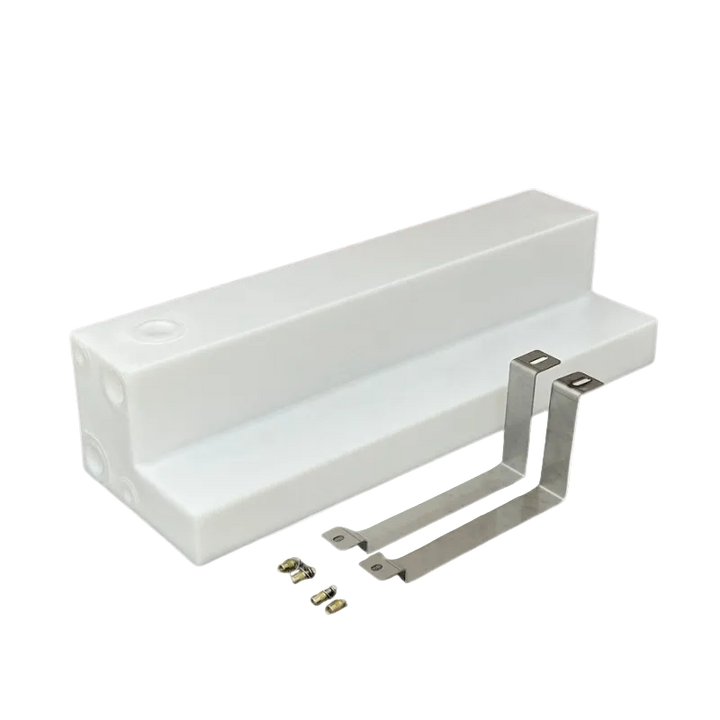

11-Gallon Mercedes Sprinter Undercarriage Water Tank (SP-UC-11)
About the Product
Claims the unused space under your slider door without drilling a single new hole in your floor. Mounts between the Sprinter's frame and the passenger-side slider door step cutout, using otherwise wasted undercarriage space. Ideal as a dedicated grey tank paired with a larger fresh water setup, or used standalone for fresh water.
⚠️ Gas engine Sprinters: The exhaust runs closer to the frame on gas models. A heat shield (not included) should be installed between the tank and exhaust before use.
Features

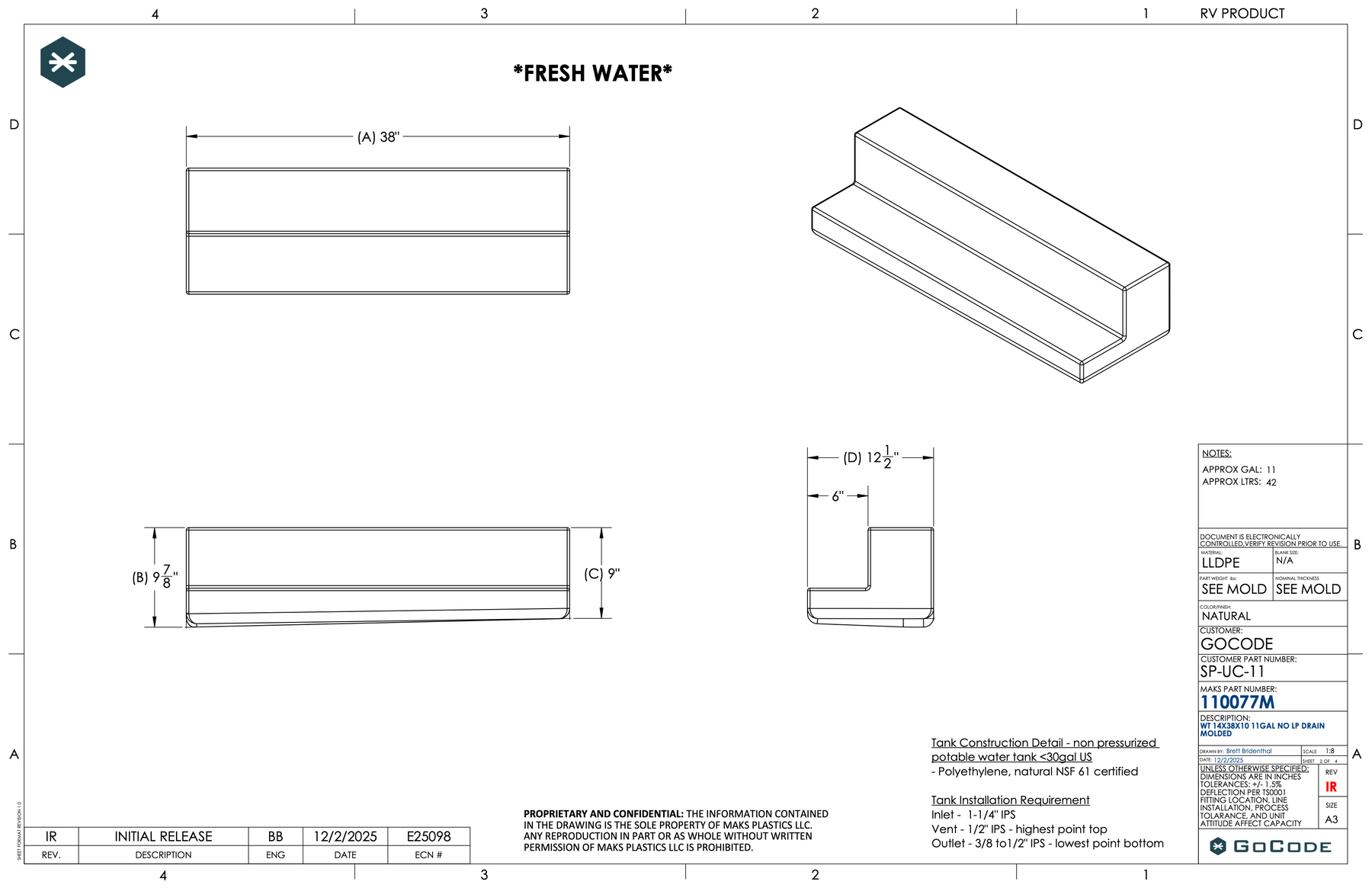

Specifications
- Size: 37.5" long × 12.25" wide × 9.25" tall
- Capacity: 11 gallons
- Weight: 12 lbs
Materials & Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS 4 Certified
- Made in the USA

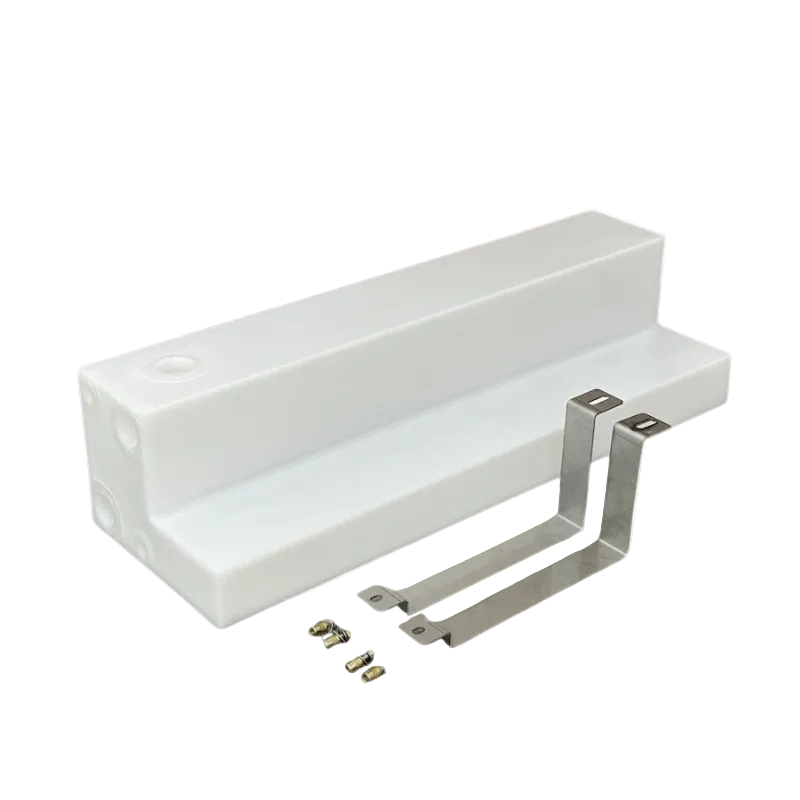

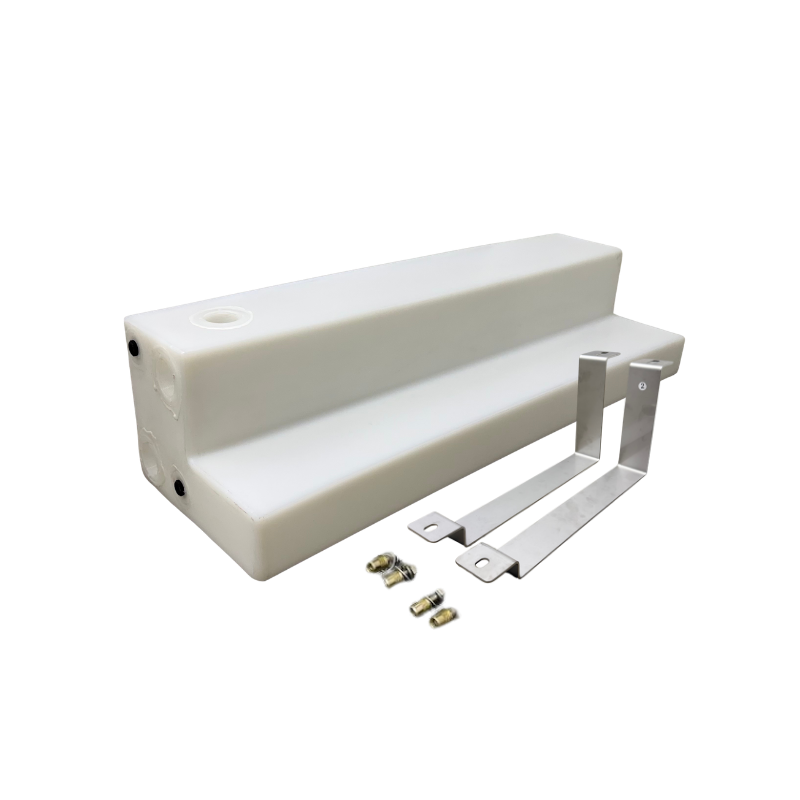

What's Included
- Water Tank
- (2) stainless steel laser-cut mounting straps
- Stainless 3/8" hardware and 3/8" rivnuts
- Note: rivnut tool required, not included
Ports & Plumbing
- (1) 1.5" NPT port on the rear-facing end
- (2) 1/2" NPT ports on the rear-facing end
- (1) 1.5" NPT port on top
- Not designed for pressurized systems, must be vented
Shipping & Lead Time
- Ships in 1-2 business days
Compatibility
- Mercedes Sprinter 1500/2500/3500 (2007-present), wheelbases 144", 170", and 170" EXT
- Passenger side, under slider door step area
- May fit other makes and models, confirm dimensions before ordering
- Compatible with AMP Research PowerStep Electric Running Boards for 2019-2021 Mercedes Sprinter (part #76264-01A), may be compatible with additional running boards
